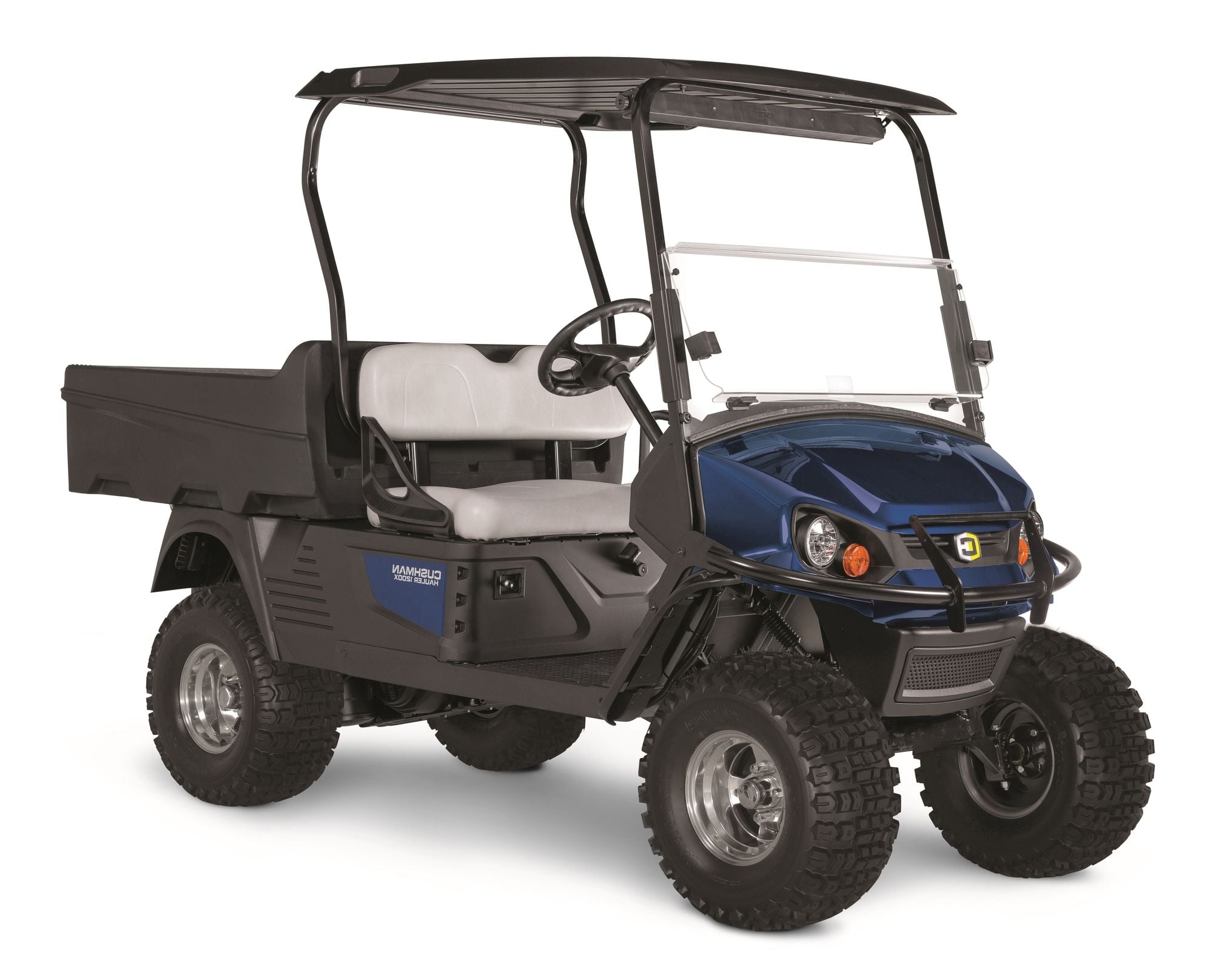

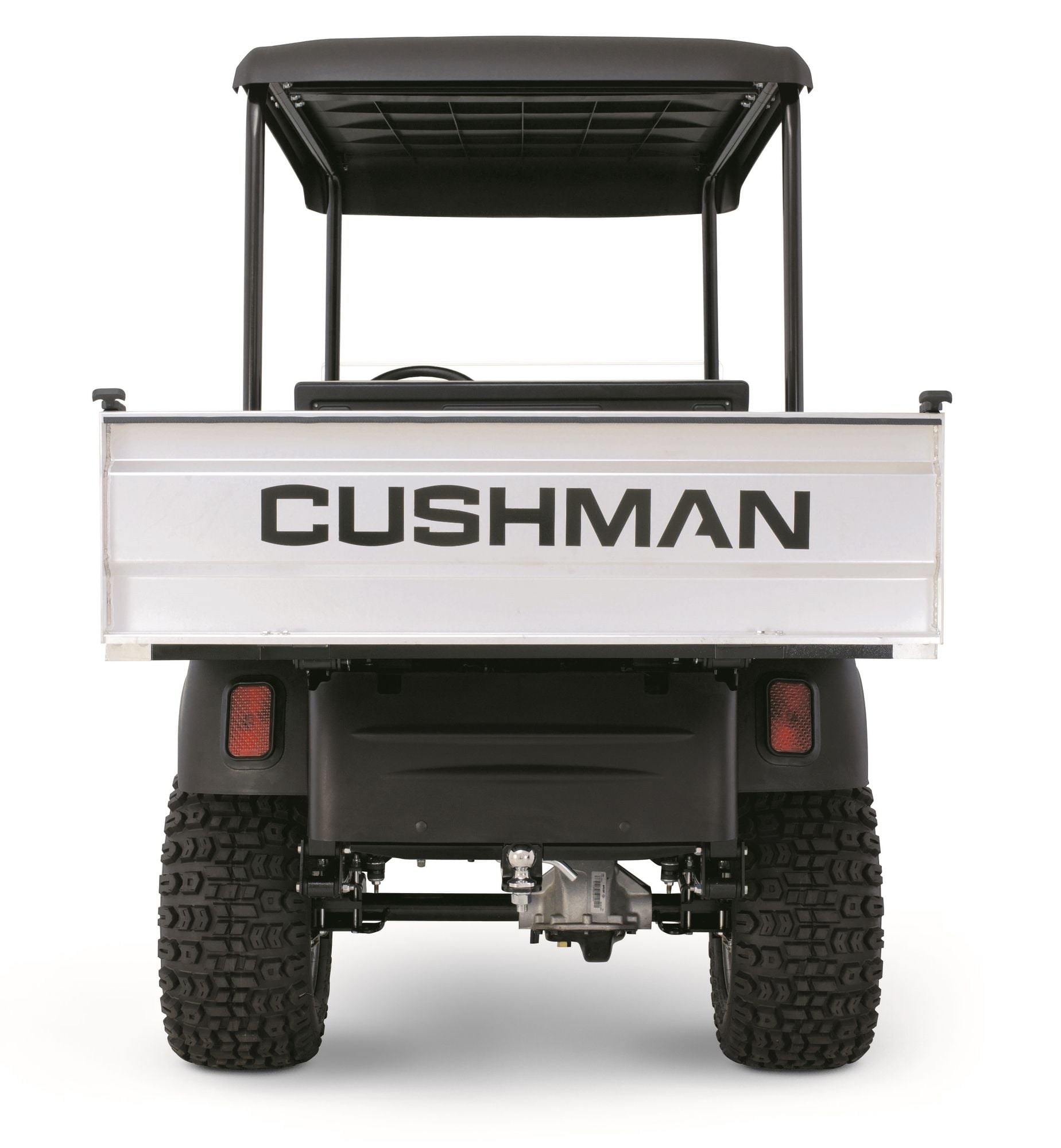

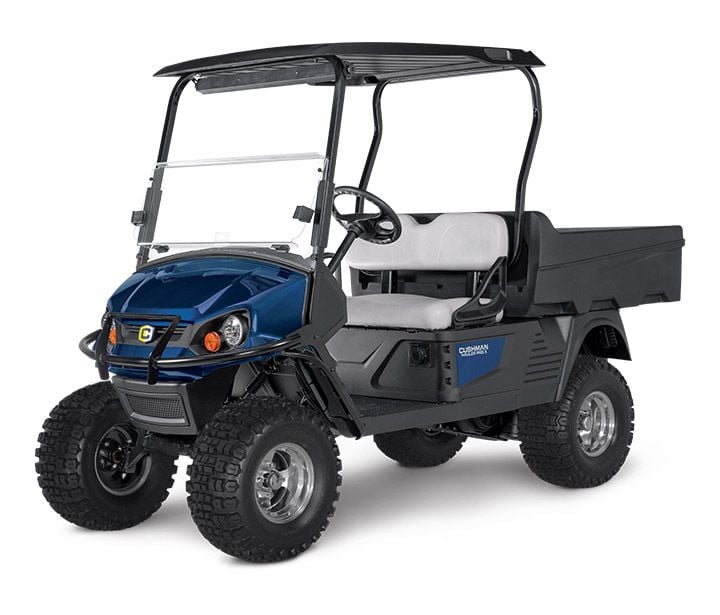

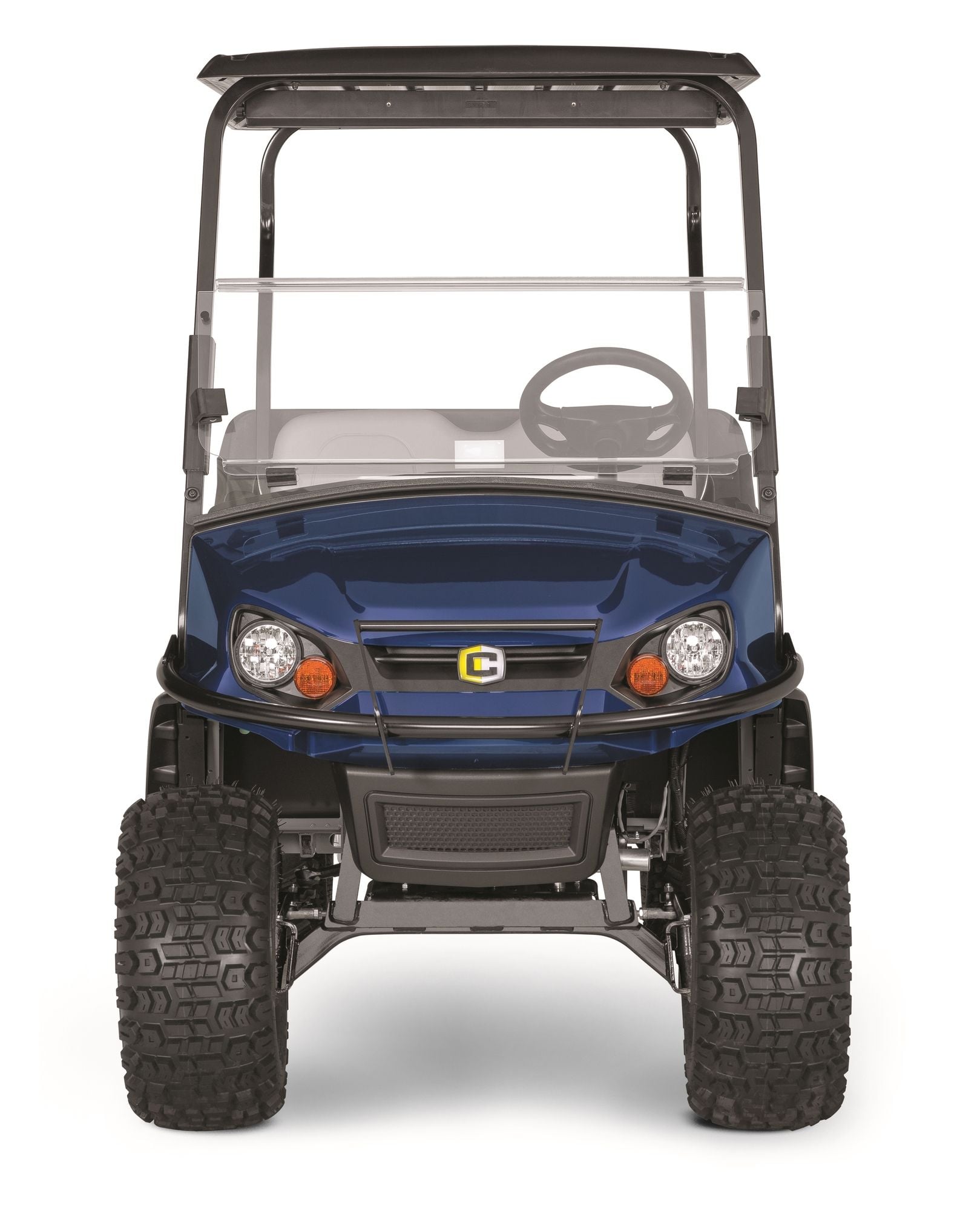

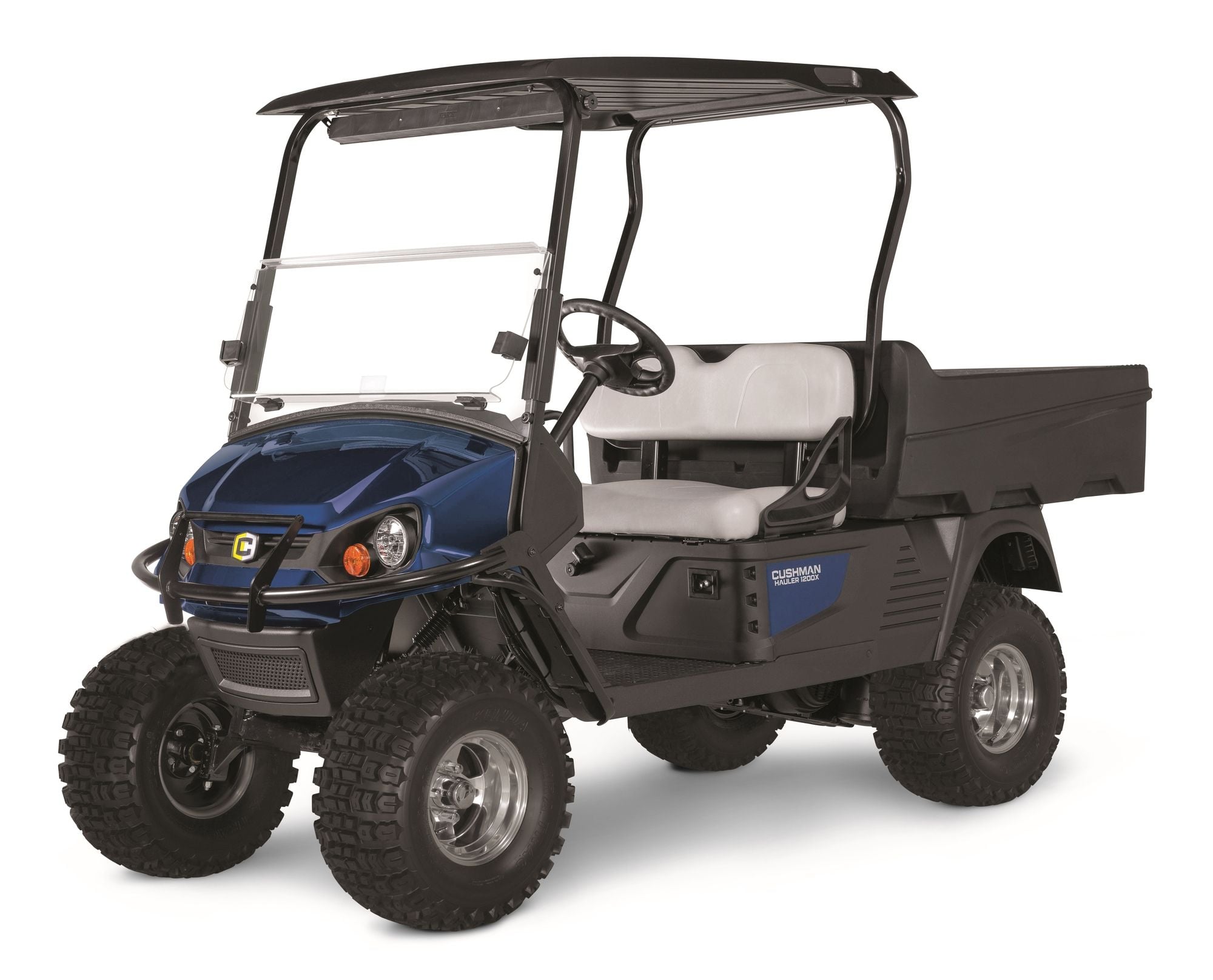

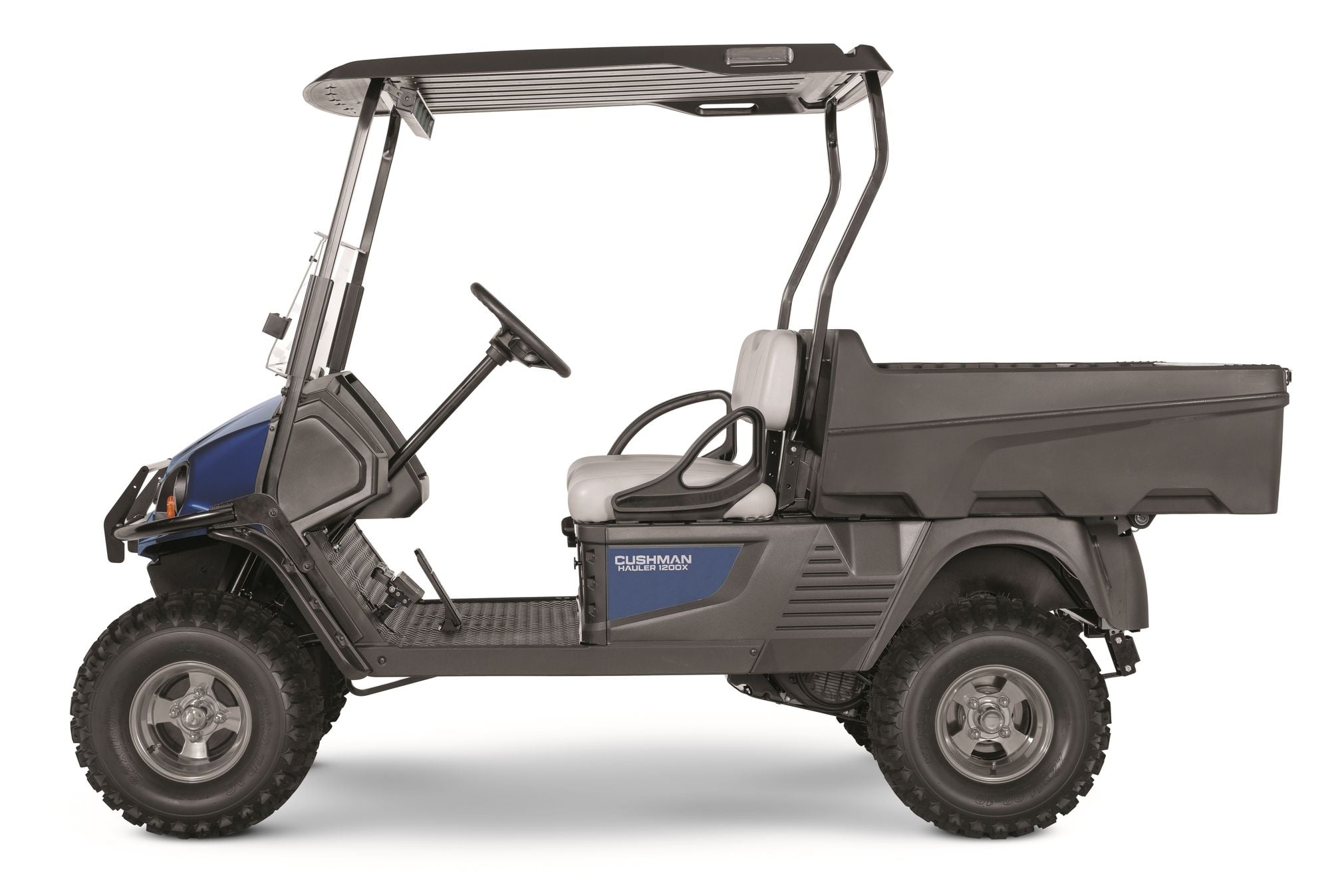

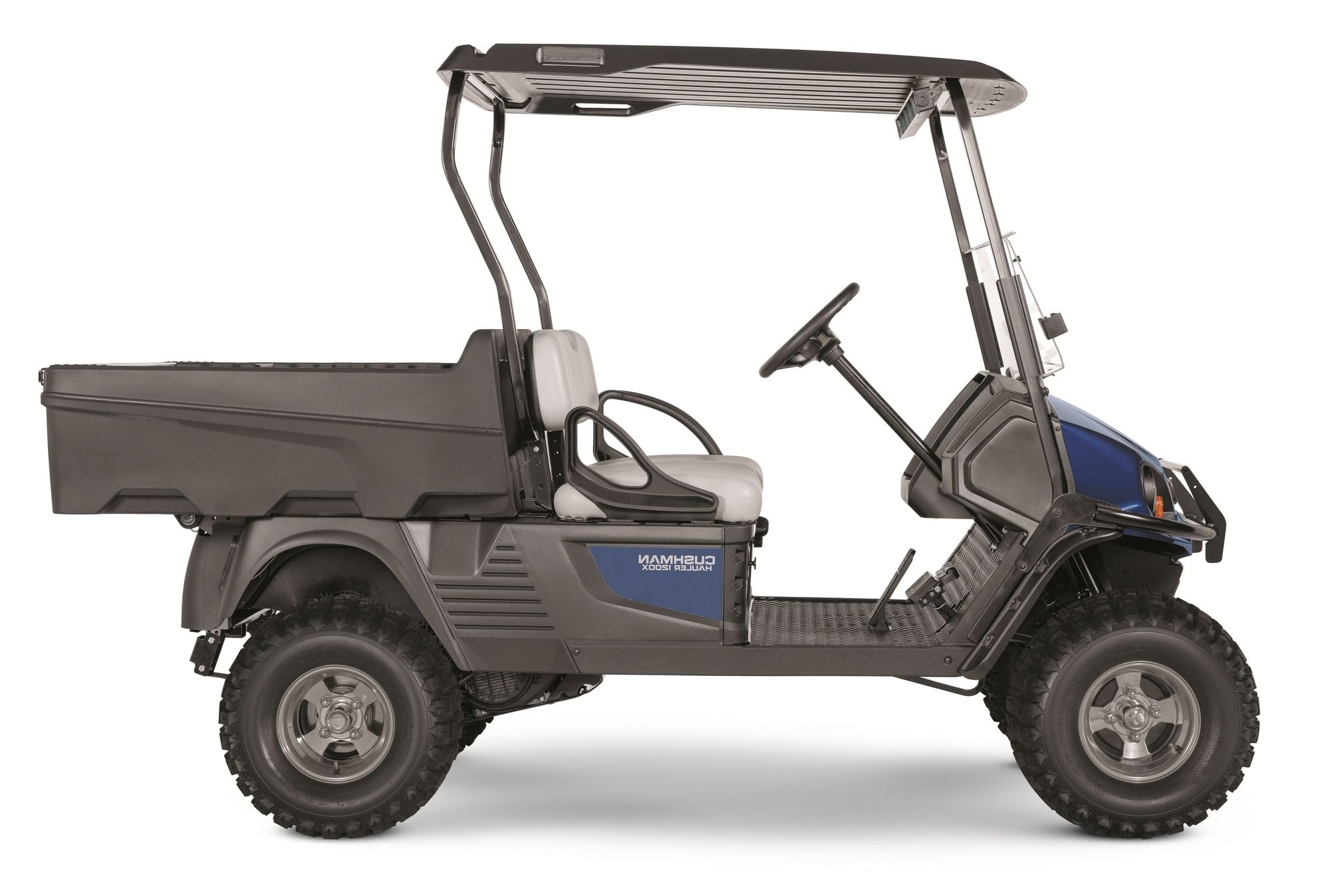

Hauler ProX - 72v AC Electric.
The Hauler® PRO-X boasts electric power designed to stand up to any challenge, with rugged tires and extra ground clearance that's ready to take you places other electric vehicles would never venture. And while this uncompromising performance makes a loud-and-clear statement, the 72V electric drivetrain delivers silent power right when you need it.
Standard Features
- 9 x 8V Trojan T875 Deep Cycle Lead Acid Batteries
- 72V Delta Q 1000 Watt On-board Charger
- Black Top Assembly & Grey Seating
- Headlights, Tail & Brake Lights
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- State of Charge Meter
- Hour Meter
- DC Converter
- Front Black Bumper/ Brush Guard
- Unique Key Switch
- Fender Flare
- Rear Hitch Receiver
- Limited Slip Differential with Diff Guard
- 12-Volt Outlet
- Split Windshield
- Horn and Reverse Beeper
- K 500 20x 8- 10 (6 Ply) Wheels
- AC Motor
- Plastic Bed with Manual Gas Assisted Lift
- Raised Suspension
- Comfort Grip Steering Wheel
- Choice of Colours
Options/Accessories
- LED Headlight Upgrade
- Turn Signals
- Aluminium Tray Upgrade
- Electric Bed Dump Upgrade
- Bed Dividers
- Long-Handled Tool Holder
- Cargo Mesh Netting
- L-Track Aluminum Bed System
- All Weather Enclosure
- USB Outlet
- Canopy Storage Net
- Rearview Mirror
- ROPS-Certified Cab
- Ladder/Hoop Rack
- Electric Bed Lift Upgrade
- Maintenance Free Gel Batteries
- Tow Hitch and 50 mm Tow Ball
Specifications
Dimensions
Overall Length: 302.26 cm
Overall Width: 125.48 cm
Overall Height (with canopy): 196 cm
Wheel Base: 197 cm
Front Wheel Track: 96.56 cm
Rear Wheel Track: 96.56 cm
Ground Clearance (at differential): 18.29 cm
Cargo Box Capacity: 12 Cu ft (0.34m³)
Power
Powersource: 72 Volts AC
Motor Type: AC Induction
Horsepower: 22.4 HP ( 16.7 kW) Peak
Electric System: 72 Volt
Battery (qty/type): Nine, 8 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 900 Watt 72V DC
Speed Controller: 350 Amp
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Neutral-Reverse
Rear Axle Ratio: 17:1
Performance
Seating Capacity: 2 Person
Curb Weight: 686 Kg
Vehicle Load Capacity: 408 Kg
Bed Load Capacity: 227 Kg
Towing Capacity: 544 Kg
Outside Clearance Circle: 7.3 m
Speed (level ground): 26.6 kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 20 x 8 - 10 (6 Ply Rated)
Body & Chassis
Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Patriot Blue
Optional Colour: Almond, Black, Electric Blue, Flame Red, Orange, Forest Green, White
Available Seat Colours: Grey
