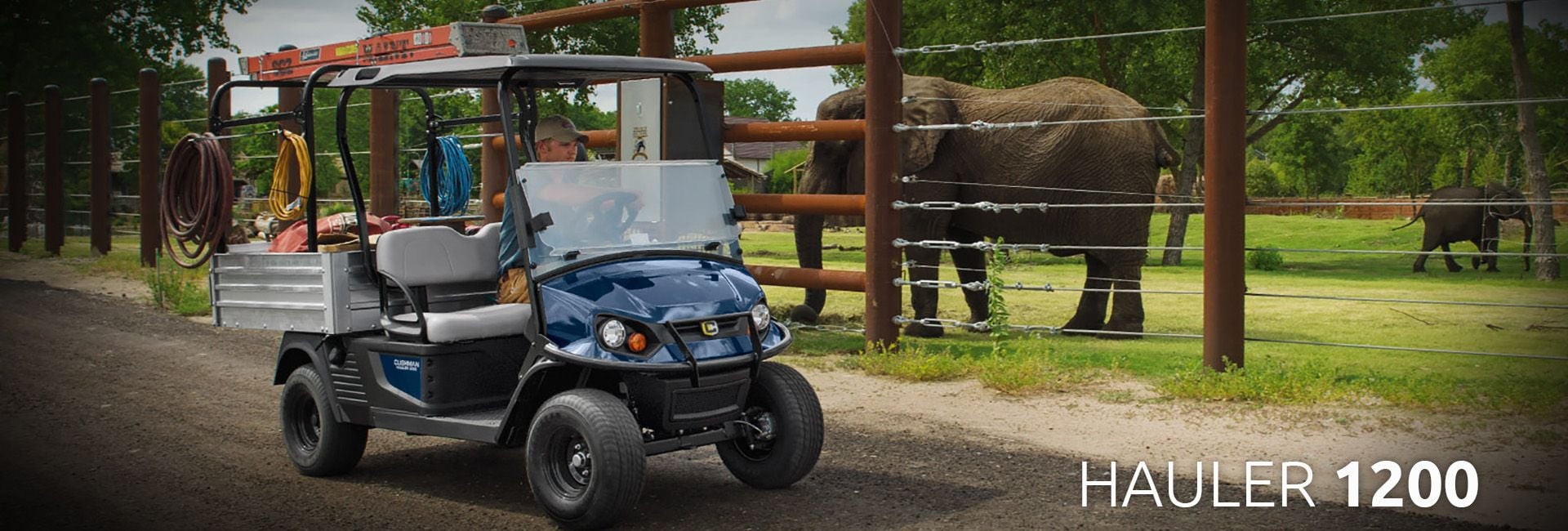

Hauler 1200 - Petrol 13.5 hp.
The most respected workers have a reputation for getting the job done day in and day out like the dependable Hauler® 800. Available with a gas or electric powertrain, it delivers the practical power you need to knock down your to-do list.
Standard Features
- Kawasaki 13hp Single Cylinder Engine
- Black Top Assembly & Grey Seating
- Head Tail & Brake Lights
- Turn Signals
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- Low Fuel/Oil Gauge
- Hour Meter
- Front Black Bumper/ Brush Guard
- Unique Key Switch
- Fender Flare
- Rear Hitch Receiver
- Limited Slip Differential with Diff Guard
- 12-Volt Outlet
- Split Windshield
- Horn and Reverse Beeper
- K 500 20x 8- 10 (6 Ply) Wheels
- Comfort Grip Steering Wheel
- Metallic Hubcaps ( Gold or Silver)
- Plastic Bed with Manual Gas Assisted Lift
- Choice of Colours
Options/Accessories
- Improved Surface Tyres
- LED Headlights with High/Low Beam
- ROPS-Certified Cab
- Bed Dividers
- Long-Handled Tool Holder
- Cargo Mesh Netting
- All Weather Enclosure
- USB Outlet
- Canopy Storage Net
- Rearview Mirror
- Electric Bed Lift Upgrade
- Tow Hitch and 50 mm Tow Ball
Specifications
Dimensions
Overall Length: 280 cm
Overall Width: 125 cm
Overall Height (with canopy): 176 cm
Wheel Base: 166 cm
Front Wheel Track: 94 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 11 cm
Cargo Box Capacity: 8.4 Cu ft (0.24m³)
Cargo Box Material: Roto-Moulded Polyethylene
Cargo Deck Dimmensions: 113 cm x 72 cm x 30.5 cm
Power
Powertrain: 4 Cycle, 24.5 ci (401cc) Cylinder
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 hp (10.1kW) Exceeeds SAEJ1940 Standard
Electric System: Starter/Generator. Solid State Reg
Battery (qty/type): One, 12v Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin On
Cooling System: Air Cooled
Fuel Capacity: 21.3 Litre
Drive Train: Continuously Variable Transmission
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse
Rear Axle Ratio: 11.47:1 (Forward) 11.35:1 (Reverse)
Performance
Seating Capacity: 2 Person
Dry Weight (without battery): 345.2 Kg
Curb Weight: 358.8 Kg
Vehicle Load Capacity: 362.9 Kg
Bed Load Capacity: 181.4 Kg
Towing Capacity: 408.2 Kg
Outside Clearance Circle: 5.8 m
Intersecting Aisle Clearance: N/A
Speed (level ground): 23.3 kph kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: K500 18 - 8.5 - 8 (6 Ply Rated)
Body & Chassis
Frame: Welded steel with E-Shield e-coat plus Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded PP
Standard Colour: Patriot Blue
Optional Colour: Almond, Black, Electric Blue, Flame Red, Orange,Forest Green White
Available Seat Colours: Grey
