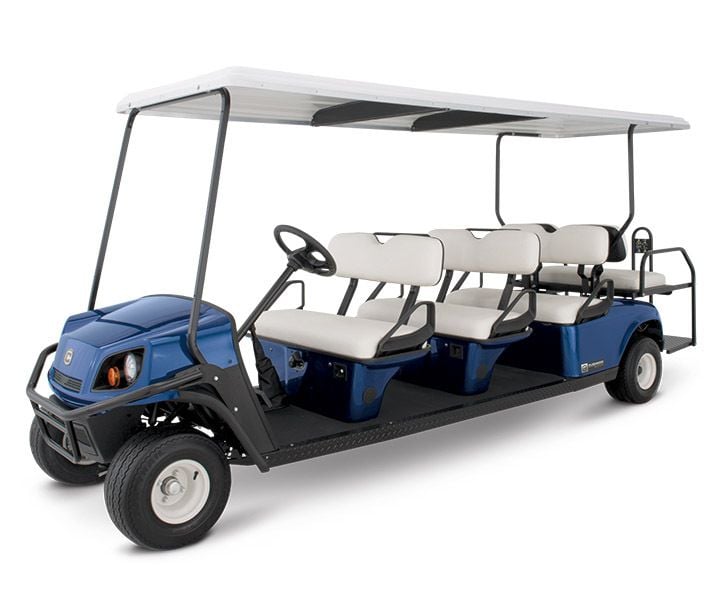

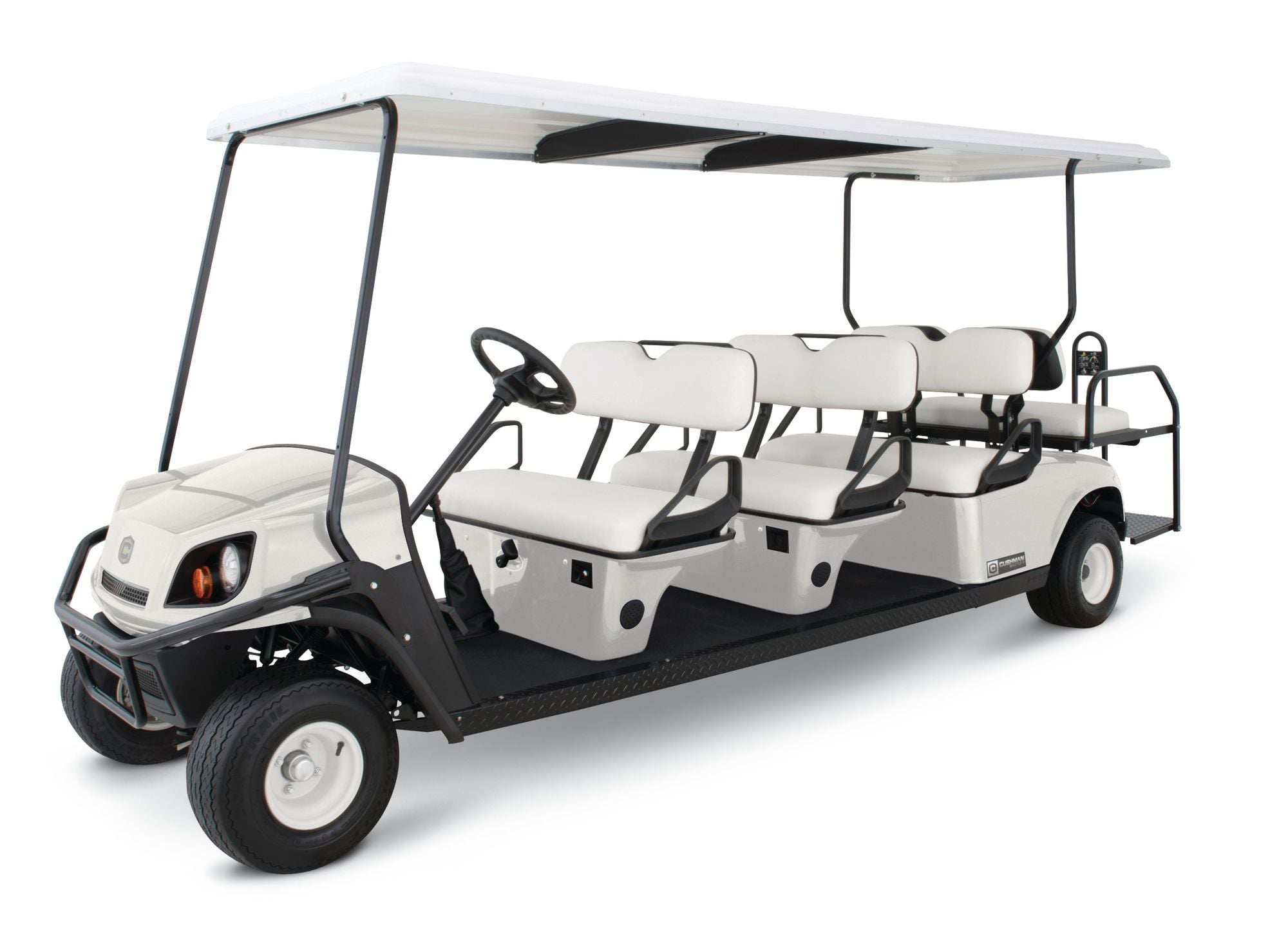

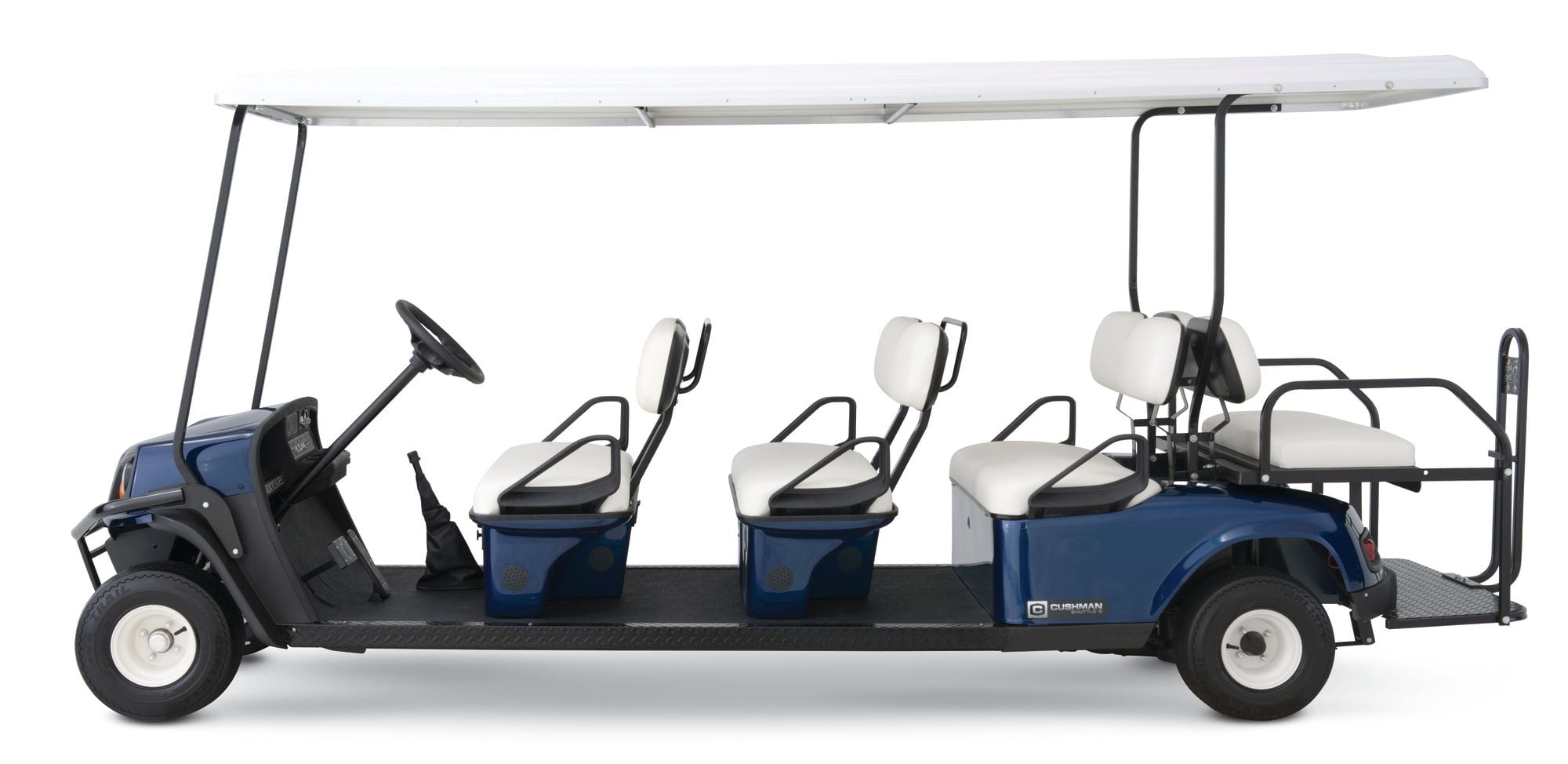

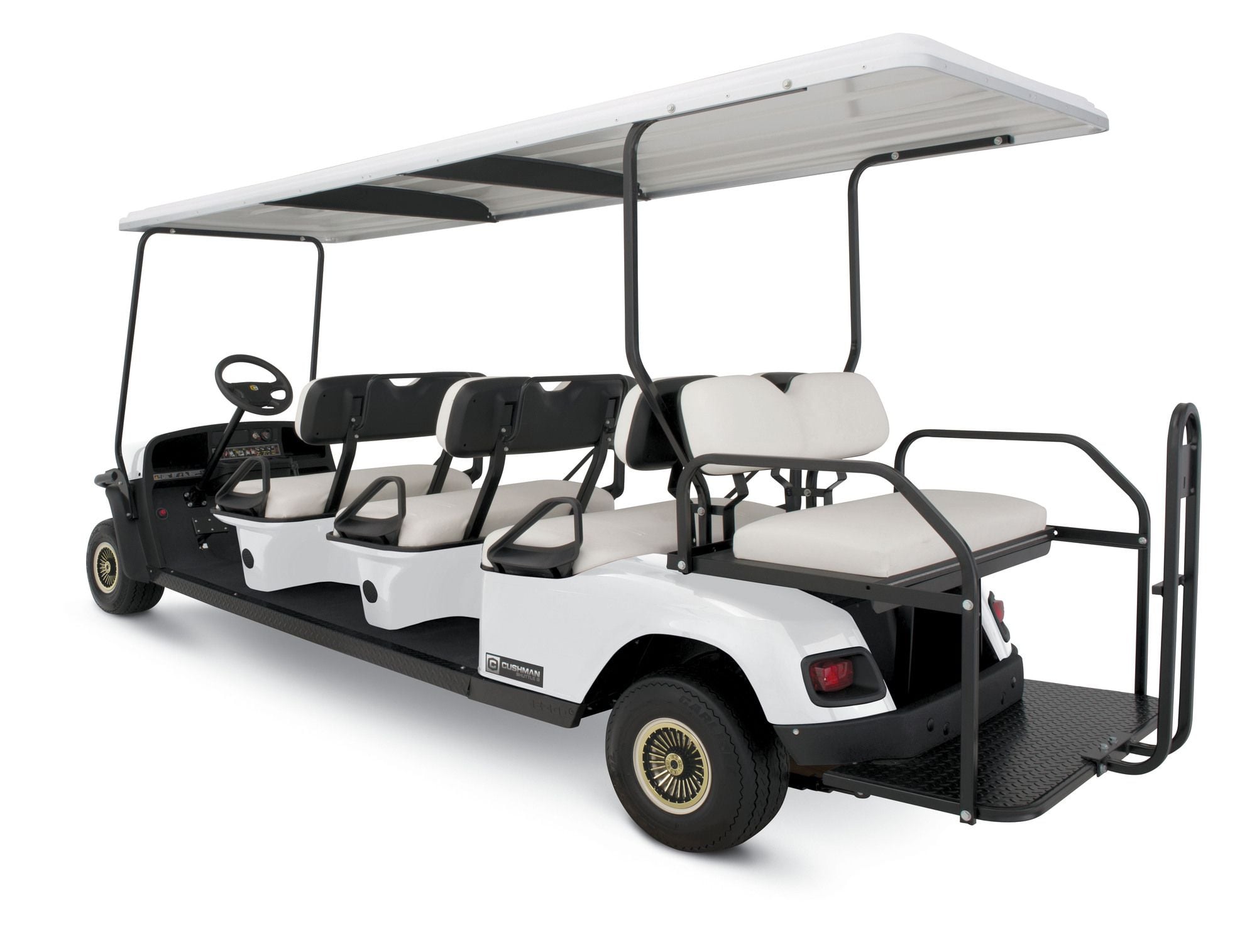

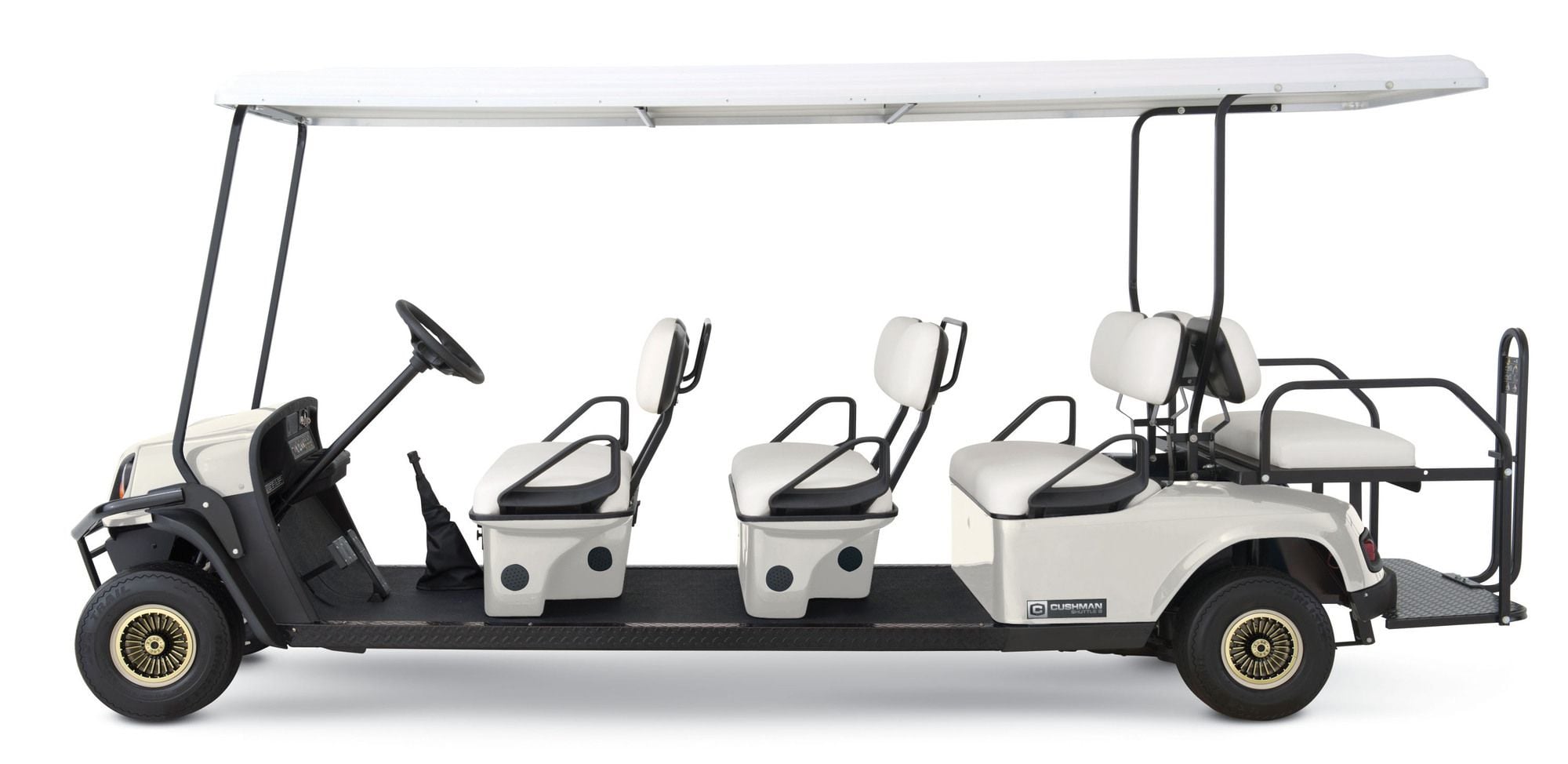

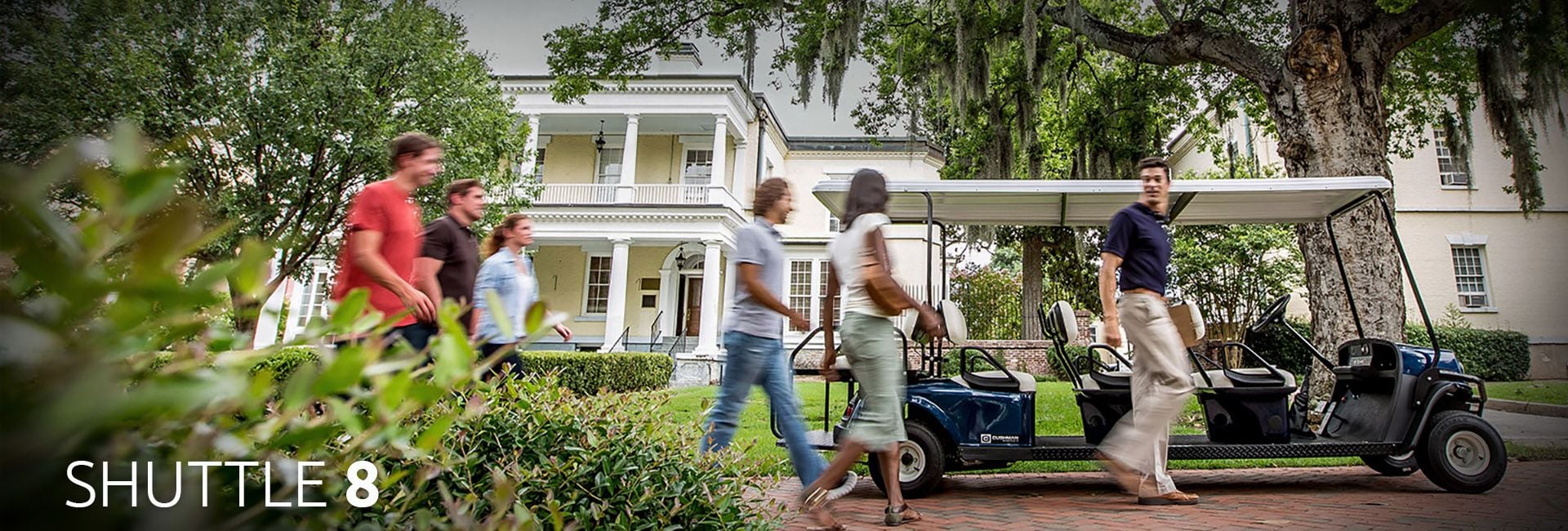

Shuttle 8 - 72v AC Electric
Designed for safety and comfort, the Shuttle 8 personnel transport vehicle delivers all the space you need. Features like a large canopy, ergonomically-designed seating, and dependable powertrain options keep guests and workers happy.
Standard Features
- 6 x 12v Trojan T1275 Deep Cycle Lead Acid Batteries
- 72 V Delta Q DC Onboard 1500 Watt Charger
- 8 Seater with Rear Flip Flop Kit ( Grey Seating)
- Extended Top Assembly ( Black, Tan or Oyster)
- State of Charge Meter
- Head Tail & Brake Lights,
- Turn Signals
- Hour Meter
- DC Converter
- Front Hydraulic Disc Brakes
- Limited Slip Differential
- Unique Group Key Switch
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- Split Windshield
- Rabbit/ Turtle Speed Switch
- Round Convex Mirror
- Front Bumper/Brush Guard
- Dual USB Port
- High Output LED Headlights
- Horn and Reverse Beeper
- Rear View Mirrors
- Choice of Colour
Options/Accessories
- Lockable Glove Box
- All Weather Enclosures
- Maintenance Free Gel Batteries
- (BFS) Battery Watering System
- Retractable Seatbelts
- Rotating Strobe Light
Specifications
Dimensions
Overall Length: 425 cm
Overall Width: 126 cm
Overall Height (with canopy): 193 cm
Wheel Base: 313 cm
Front Wheel Track: 91 cm
Rear Wheel Track: 97 cm
Ground Clearance (at differential): 11 cm
Power
Powertrain: 72 Volts DC
Horsepower: 22.4 HP ( 16.7 kW) Peak
Electric System: 72 Volt
Battery (qty/type): Six, 12 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 1000 Watt, 72V, 120/230V VAC UL Listed
Speed Controller: 350 Amp AC Controller
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:1
Performance
Seating Capacity: 8 Person
Dry Weight (without battery): 546 Kg
Curb Weight: 769 Kg
Vehicle Load Capacity: 726 Kg
Outside Clearance Circle: 10 m
Speed (level ground): Rabbit Mode - 26.4 kph ± 0.8 kph / Turtle Mode - 19.3 kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: 4-Wheel Hydraulic Brakes - Front Disc, Rear Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: Kenda 18 - 8.9 - 8 (8 Ply Rated)
Body & Chassis
Frame: Welded steel with Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Rear Body & Finish: Injection Moulded TPO
Standard Colour: Ivory
Optional Colour: Almond, Black, Electric Blue, Flame Red, Patriot Blue, White, Safety Yellow, Forest Green, Platinum, Metallic Charcoal, Sunburst Orange
Available Seat Colours: Tan, Oyster, Grey
