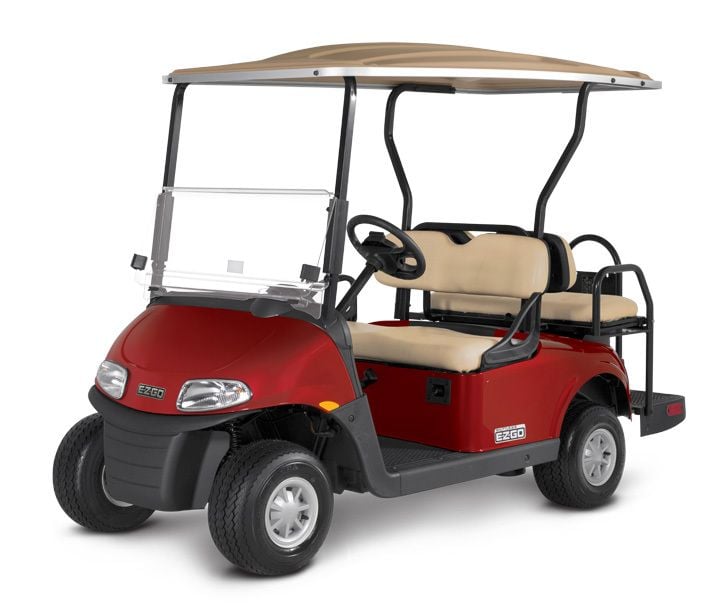

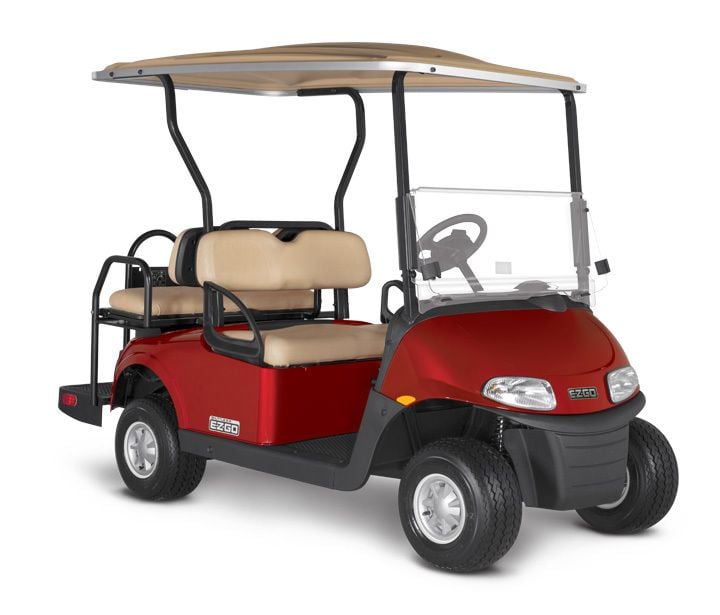

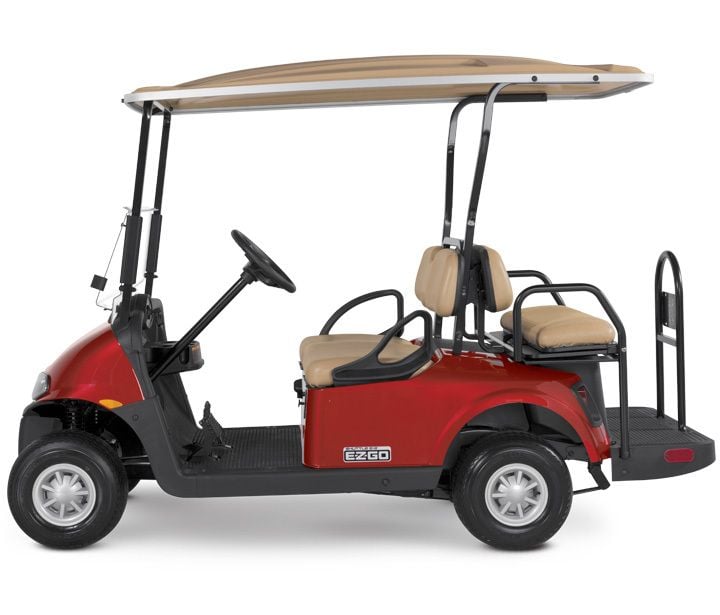

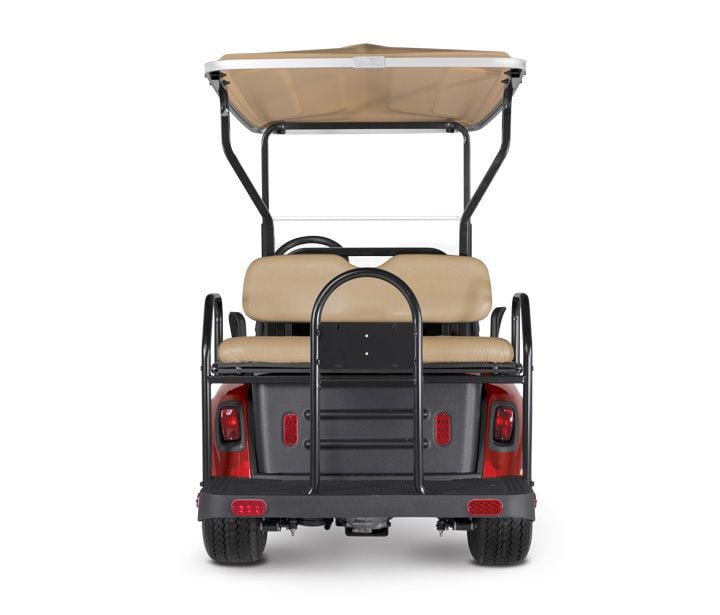

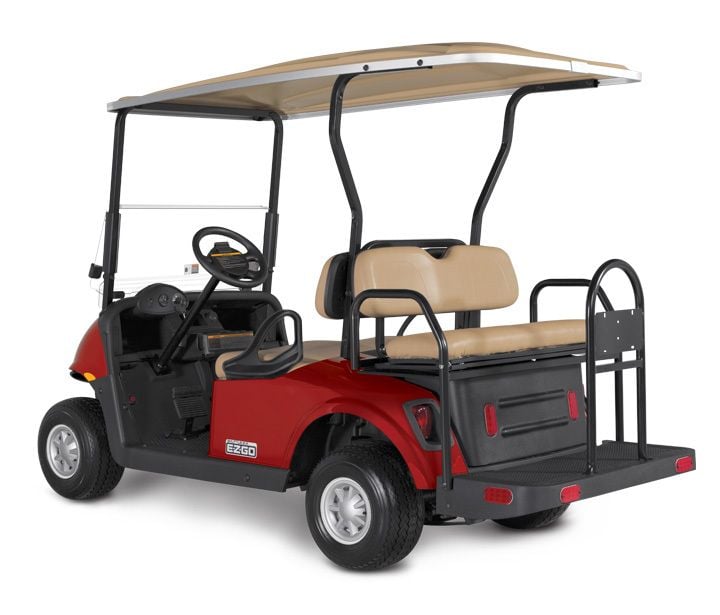

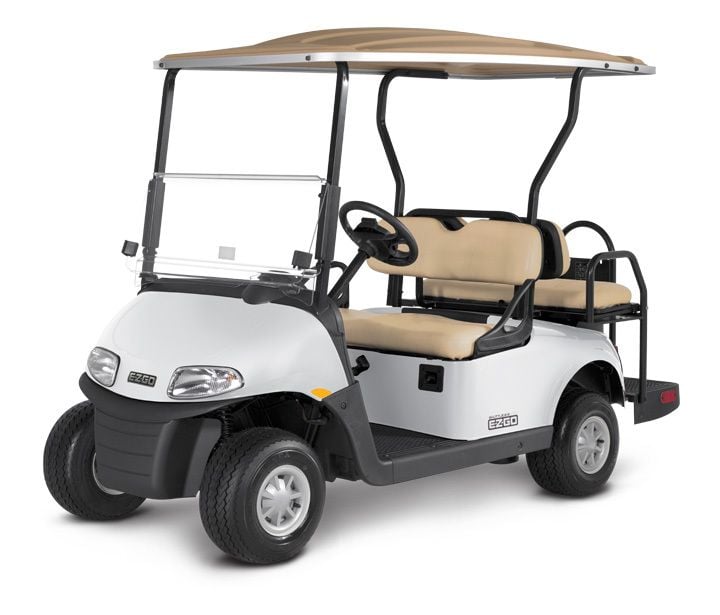

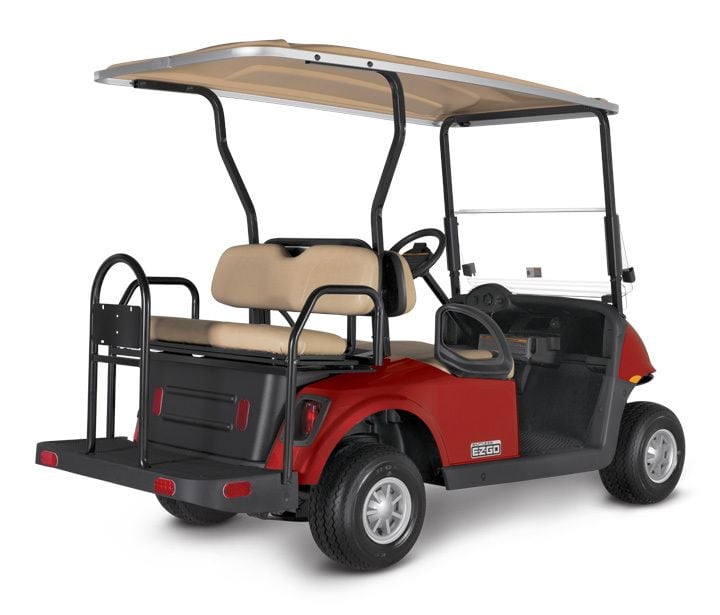

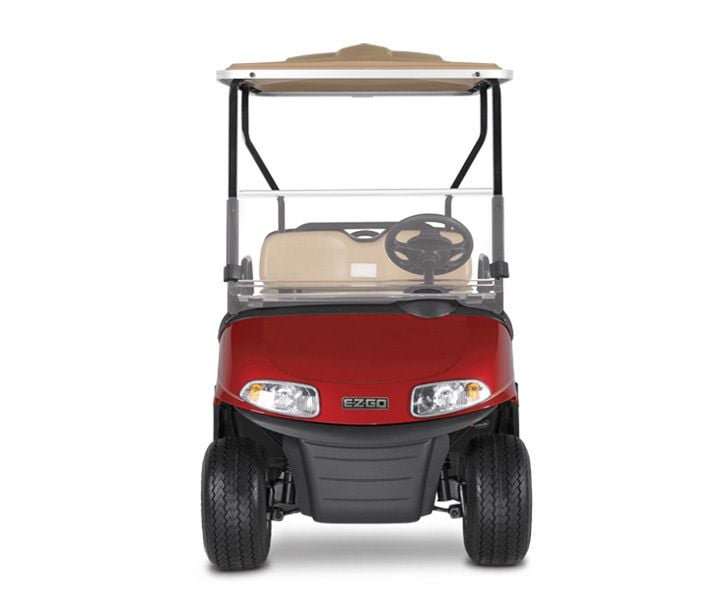

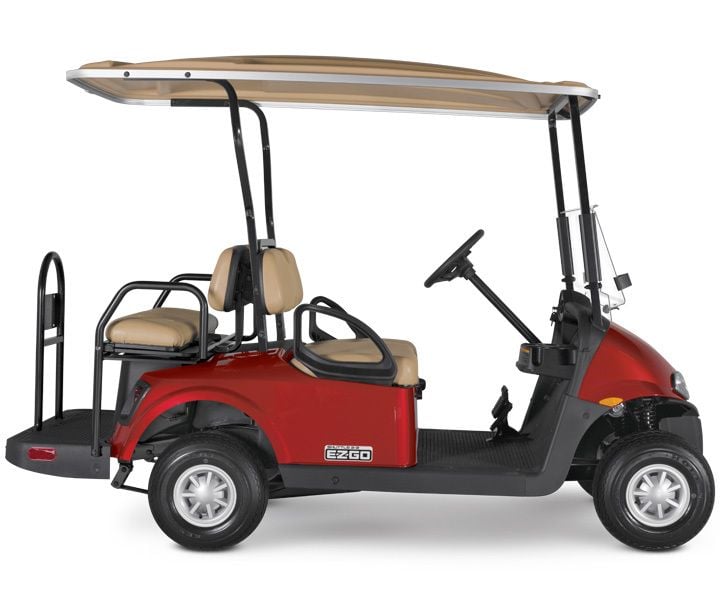

Freedom RXV 2+2 - Petrol 13 hp
This is your day, and the E-Z-GO Freedom RXV 2+2 can help you get the most from it. With all the premium features and enhanced comfort from the Freedom RXV, the Freedom RXV 2+2 adds room for the whole gang. So grab the kids and go wherever the day takes you!
Standard Features
- Kawasaki 13hp Single Cylinder Petrol Engine
- Oyster, Black or Stone Beige Extended Top Assembly
- Oyster, Black or Stone Beige Fixed 4 Rear Seat Kit
- Split Windshield (Clear or Tinted)
- Low Fuel/Oil Guage
- Hour Meter
- Scuff Guards,
- Injection Moulded TPO Body finish
- Metallic Hubcaps ( Gold or Silver)
- Unique Key switch
- Head Tail & Brake Lights
- Turn Signals
- Pin Striping
- Horn and Reverse Beeper
- Choice of Colour
Options/Accessories
- All Weather enclosure ( Clear or Tinted)
- 10", 12" or 14" Mag Wheels
- Lockable Glovebox doors
- Rearview mirror
- Dual USB port
- Custom Seats
- Premium Steering Wheel
- Beverage Trays
- Rubber Floormat
- Passenger Scorecard Holder
- LED Headlights/Day time running lights
- 2 Bag Golf Attachment with Sand Bottle
- Front and Rear Fender Flares
- Radio/Stereo
Specifications
Dimensions
Overall Length: 268 cm
Overall Width: 119 cm
Overall Height (no canopy): 119 cm
Overall Height (with canopy): 191cm
Wheel Base: 168 cm
Front Wheel Track: 88 cm
Rear Wheel Track: 98 cm
Ground Clearance (at differential): 8 cm
Power
Power Source: 4-Cycle 24.5 cu in (401cc) Low Emissions
Valve Train: Single-Cylinder OHV with Hemispheric Combustion Chamber
Horsepower: 13.5 hp (10.1kW) Exceeeds SAE J1940 Std
Electric System: Starter/Generator, Solid State Regulator
Battery (qty/type): One, 12 Volt Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Industrial Rated Dry Filter
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 22 Litre
Drive Train: Automatic, Continuously Variable Transmission (CVT)
Transaxle: Differential with helical gears
Gear Selection: Forward-Reverse
Rear Axle Ratio: 11.42:1
Key Switch: Unique Group, Unique Individual
Programmable Golf Modes: N/A
Performance
Seating Capacity: 4 Person
Dry Weight (without battery): 356 Kg
Curb Weight: 374 Kg
Vehicle Load Capacity: 360 Kg
Outside Clearance Circle: 5.8 m
Speed (level ground): 23 kph ± 0.8 kph
Towing Capacity: 3 E-Z-GO Golf Cars with Approved permanent tow bar
Steering & Suspension
Steering: Double-ended Rack and Pinion
Front Suspension: Independent A-arm Coil over Shock
Rear Suspension: Mono Leaf Springs with hydraulic Shocks
Service Brake: Rear Wheel Mechanical Self Adjusting Drum
Parking Brake: Self-compensating, Single Point Engagement
Tyres: Turf Tyres 18 x 8.5 - 8 (4 Ply Rated)
Body & Chassis
Frame: Welded steel with powder coat protection
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal, Orange, Patriot Blue, Platinum, White
Standard Seat Colour: Stone Beige
Optional Seat Colours: Black or Oyster
