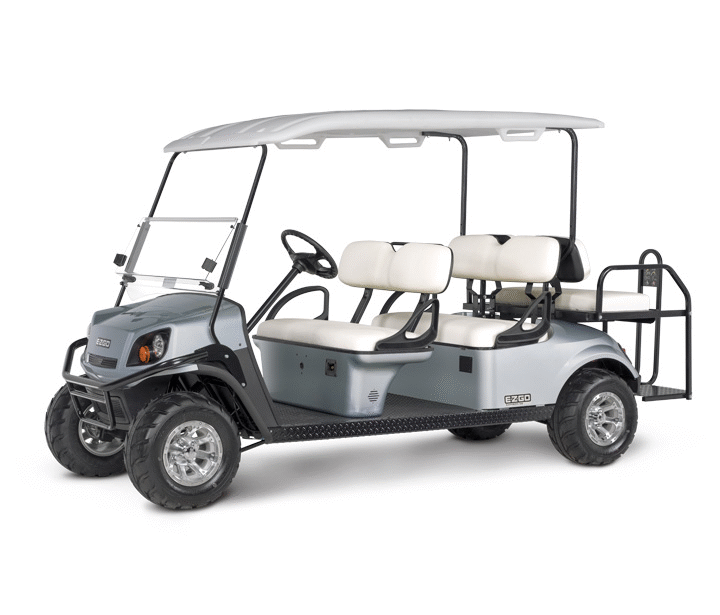

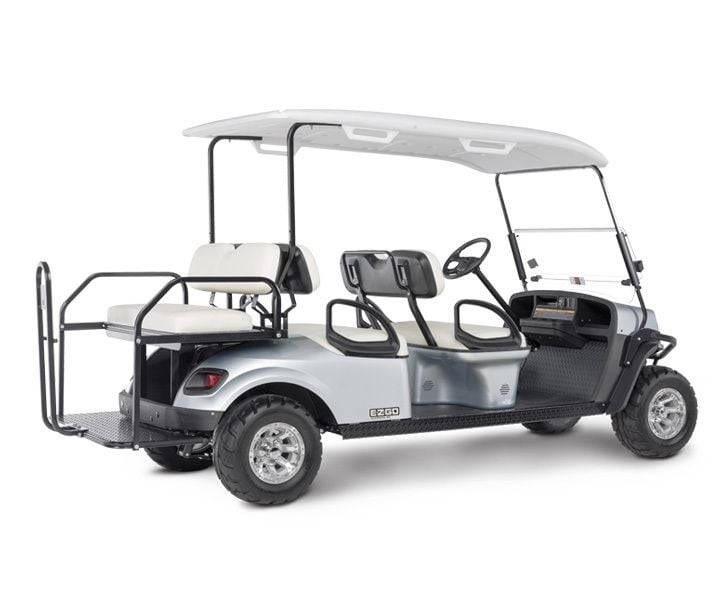

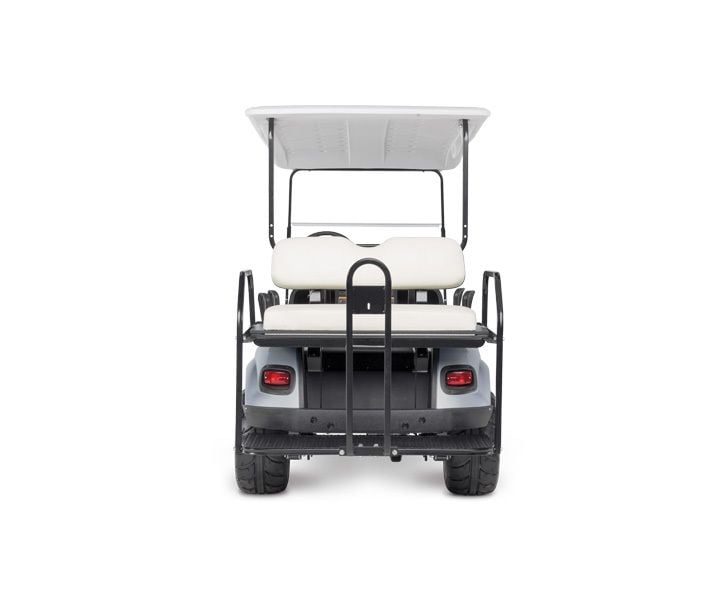

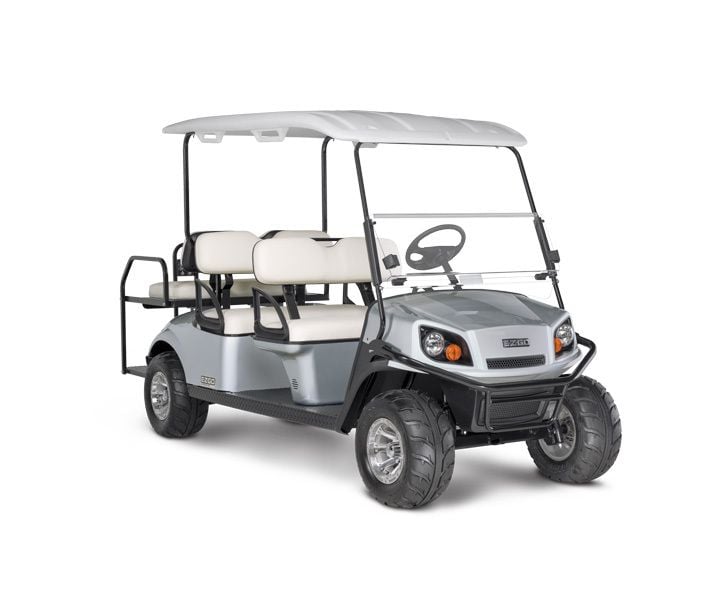

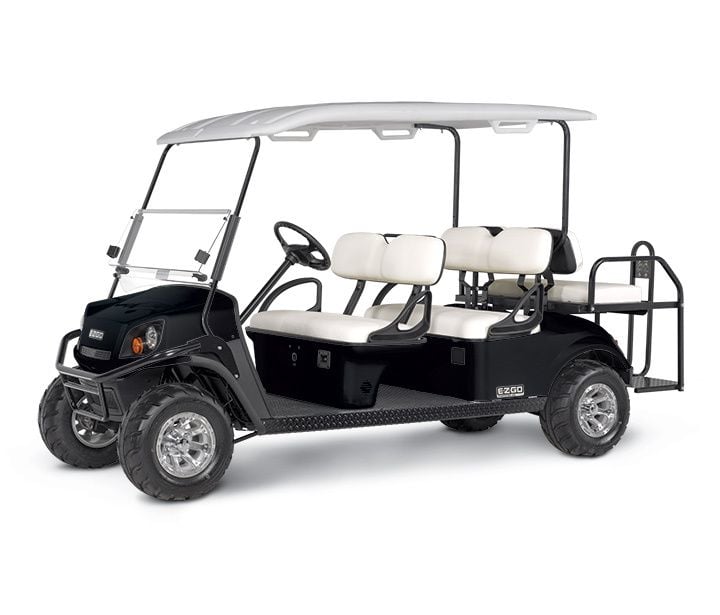

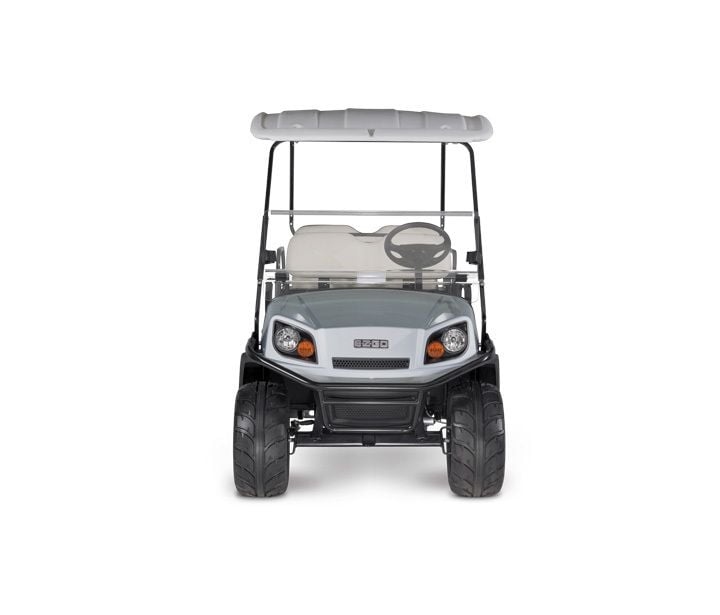

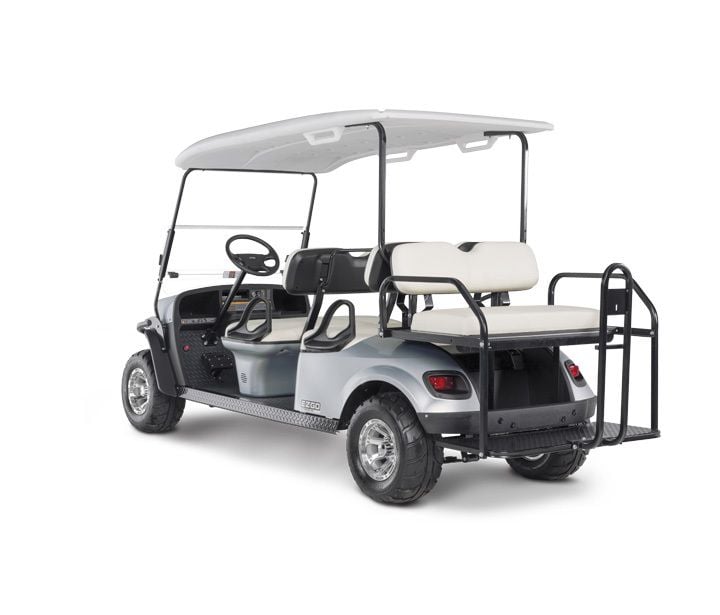

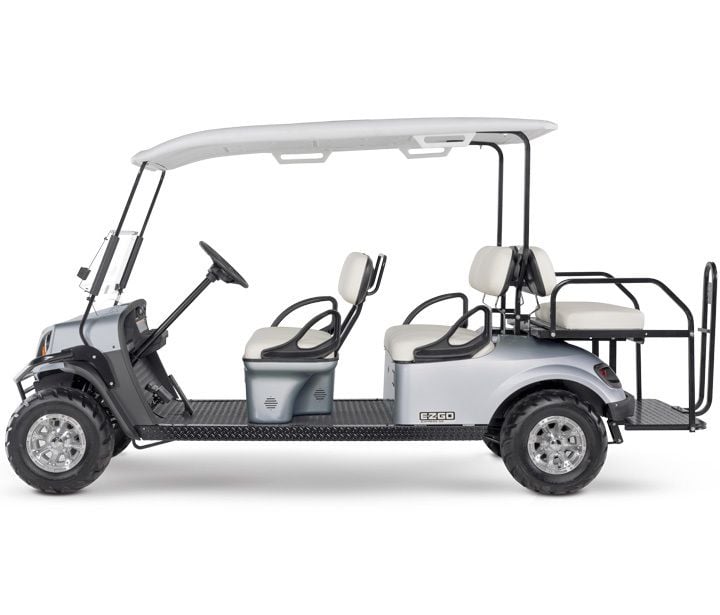

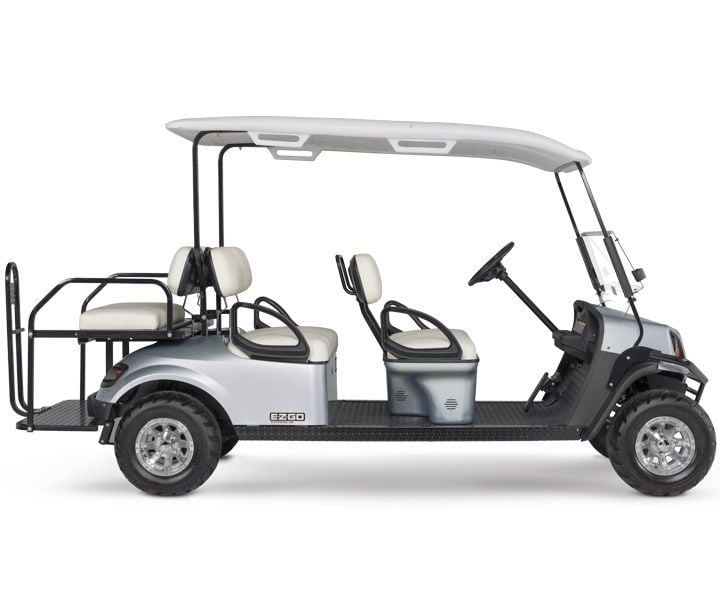

Express S6 - Petrol 13.5 hp
The Express S6 is built to help you enjoy your days in style and keep you ready for whatever lies ahead. With seating for 6 and a convertible cargo bed, the Express S6 is built to fit your friends, family and cargo. Equipped with chrome wheels and a lower ride height, the Express S6 delivers a smooth and stable ride every time. Now offered with the unmatched efficiency and power of the 72-volt AC drivetrain, hop into the Express S6 to see where the day can take you.
Standard Features
- Kawasaki 13 hp Single Cylinder Petrol Engine
- Oyster, Black or Tan Extended Top Assembly
- Oyster, Black, Tan or Two-toned Seats with 4 Caddi Flip Flop Seat Rear Kit
- Split Windshield
- Low Fuel/Oil Guage
- Hour Meter
- Front Bumper/ Brush Guard
- Injection Moulded TPO Body finish
- Speedracer 18x10-10 on Diamond Wheel
- Unique Key switch
- Tail & Brake Lights
- Turn Signals
- USB/12 Volt Outlet
- Limited Slip Differential
- Comfort Grip Steering Wheel
- High Output LED Headlights
- Horn and Reverse Beeper
- Choice of Colour
Options/Accessories
- All Weather enclosures ( Clear or Tinted)
- Woodside Stake Cargo Bed ( Replaces rear facing seat)
- Roto-molded plastic bed (replaces rear-facing seat)
- 2 Inch (5cm) Front Hitch Receiver
- Trail Tyres
Specifications
Dimensions
Overall Length: 359 cm
Overall Width: 123 cm
Overall Height (no canopy): 131 cm
Overall Height (with canopy): 194 cm
Wheel Base: 237 cm
Front Wheel Track: 98 cm
Rear Wheel Track: 99 cm
Ground Clearance (at differential): 11 cm
Power
Power Source: 4 Cylce 24.5 cu in (401 cc). Low Emissions
Valve Train: Single Cylinder OHV
Horsepower (kW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std
Electric System: Starter/Generator. Solid State Regulator
Battery (qty/type): One, 12 Volt Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner : Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 22 Litre Tank
Drive Train : Continuously Variable Transmission (CVT)
Transaxle : Differential with helical Gears
Gear Selection: Forward - Reverse
Rear Axle Ratio: 11.42:1 ( Forward) 15.78:1 ( Reverse)
Performance
Seating Capacity: 4/6 Person
Dry Weight (without battery): 450 Kg
Curb Weight: 471 Kg
Vehicle Load Capacity: 544 Kg
Outside Clearance Circle: 9.9 m
High Speed (level ground): 25.7 kph ± 0.8 kph
Low Speed (level ground): N/A
Steering & Suspension
Steering: Self-compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical self-adjusting drum
Parking Brake: Self-compensating, Single Point Engagement
Tyres: Stree Tyres 18 x 10 - 10, Diamon Pattern Spoke Wheels
Body & Chassis
Frame: Welded steel with DuraShield powder coat
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal,Patriot Blue, Platinum, White, Jacobsen Orange
Standard Seat Colour: Red on Black
Optional Seat Colours: Black, Tan, Oyster, Grey on Black, White on Blue, White on Red
Overall Length: 359 cm
Overall Width: 123 cm
Overall Height (no canopy): 131 cm
Overall Height (with canopy): 194 cm
Wheel Base: 237 cm
Front Wheel Track: 98 cm
Rear Wheel Track: 99 cm
Ground Clearance (at differential): 11 cm
Power
Power Source: 4 Cylce 24.5 cu in (401 cc). Low Emissions
Valve Train: Single Cylinder OHV
Horsepower (kW): 13.5 hp (10.1 kW) Exceeds SAE J1940 Std
Electric System: Starter/Generator. Solid State Regulator
Battery (qty/type): One, 12 Volt Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner : Replaceable Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin-On
Cooling System: Air Cooled
Fuel Capacity: 22 Litre Tank
Drive Train : Continuously Variable Transmission (CVT)
Transaxle : Differential with helical Gears
Gear Selection: Forward - Reverse
Rear Axle Ratio: 11.42:1 ( Forward) 15.78:1 ( Reverse)
Performance
Seating Capacity: 4/6 Person
Dry Weight (without battery): 450 Kg
Curb Weight: 471 Kg
Vehicle Load Capacity: 544 Kg
Outside Clearance Circle: 9.9 m
High Speed (level ground): 25.7 kph ± 0.8 kph
Low Speed (level ground): N/A
Steering & Suspension
Steering: Self-compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical self-adjusting drum
Parking Brake: Self-compensating, Single Point Engagement
Tyres: Stree Tyres 18 x 10 - 10, Diamon Pattern Spoke Wheels
Body & Chassis
Frame: Welded steel with DuraShield powder coat
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal,Patriot Blue, Platinum, White, Jacobsen Orange
Standard Seat Colour: Red on Black
Optional Seat Colours: Black, Tan, Oyster, Grey on Black, White on Blue, White on Red
