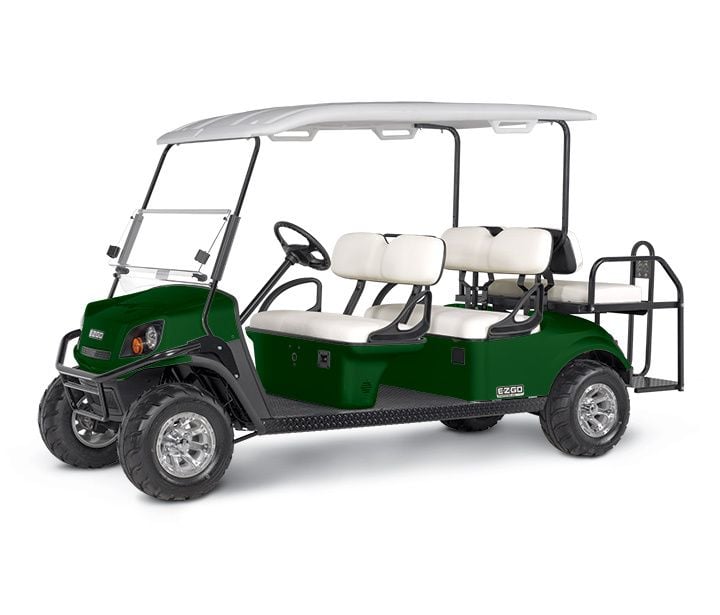

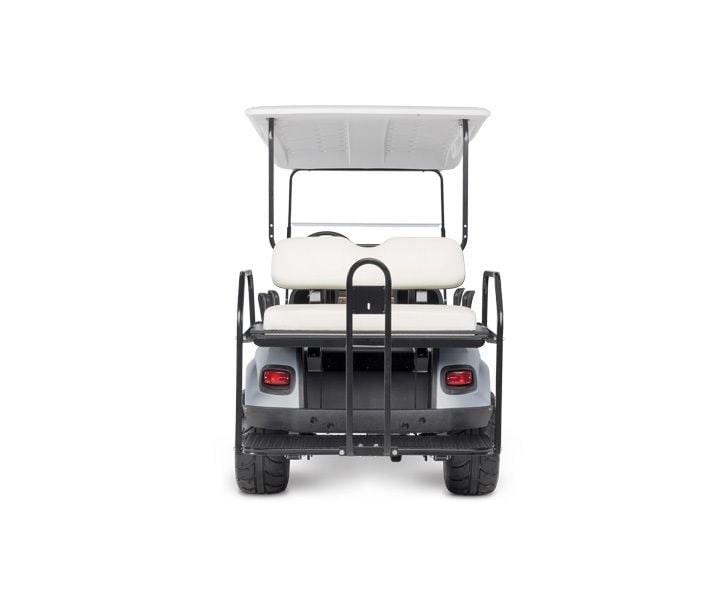

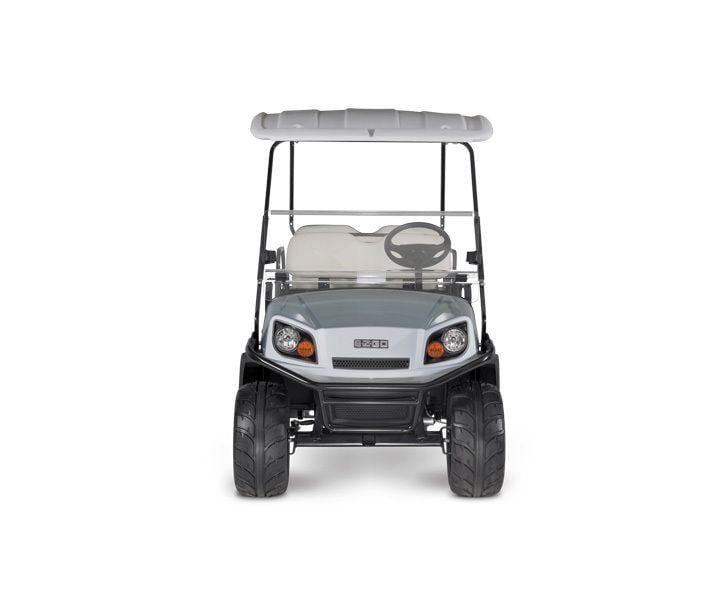

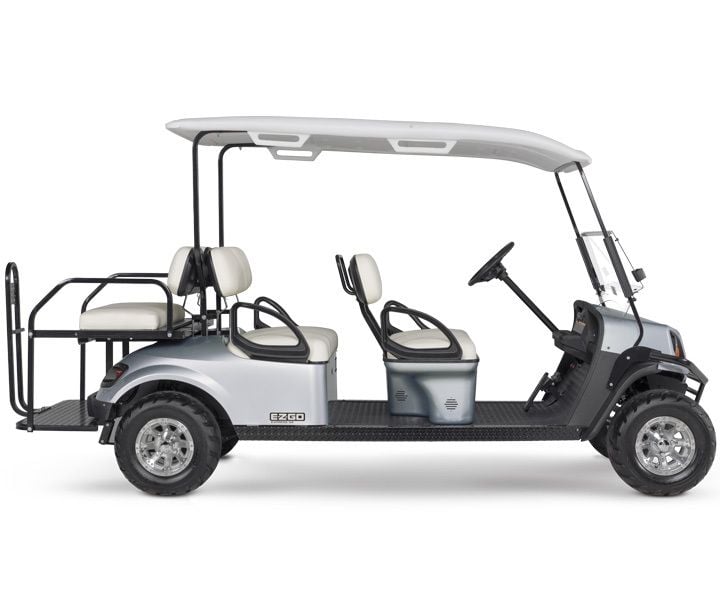

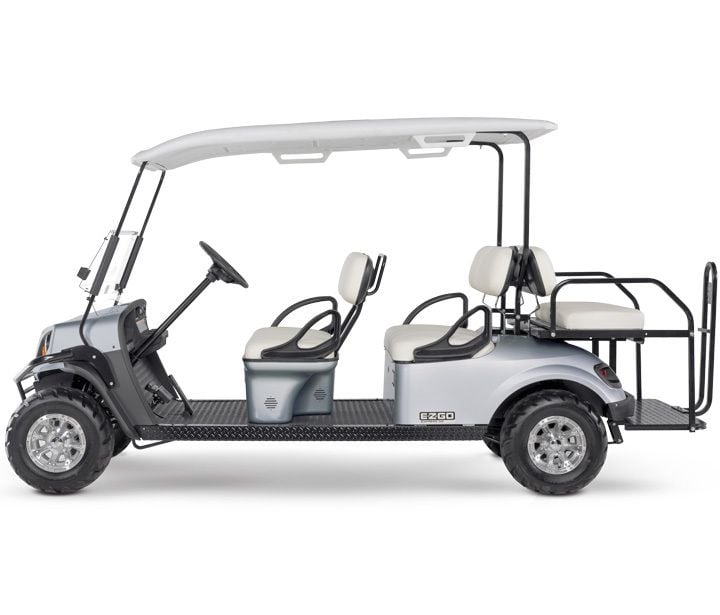

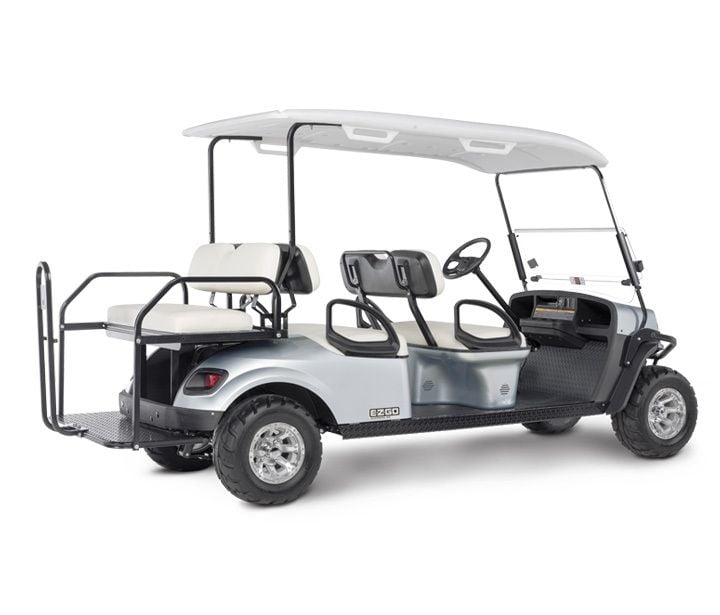

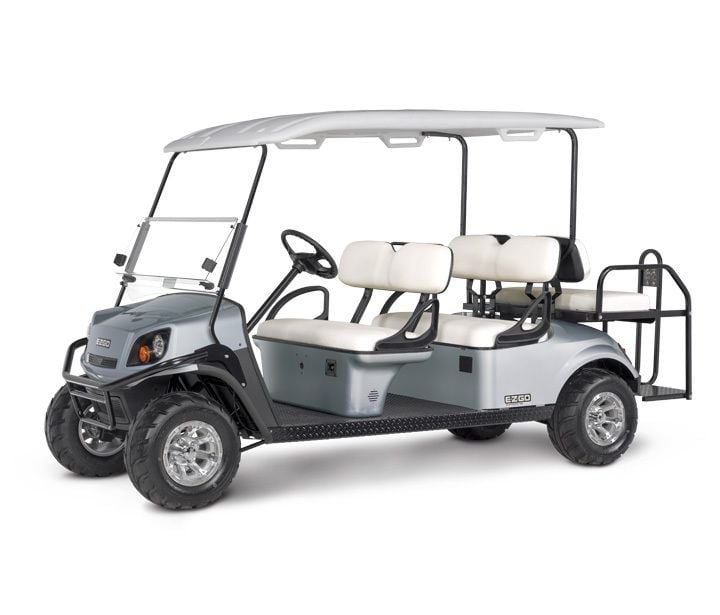

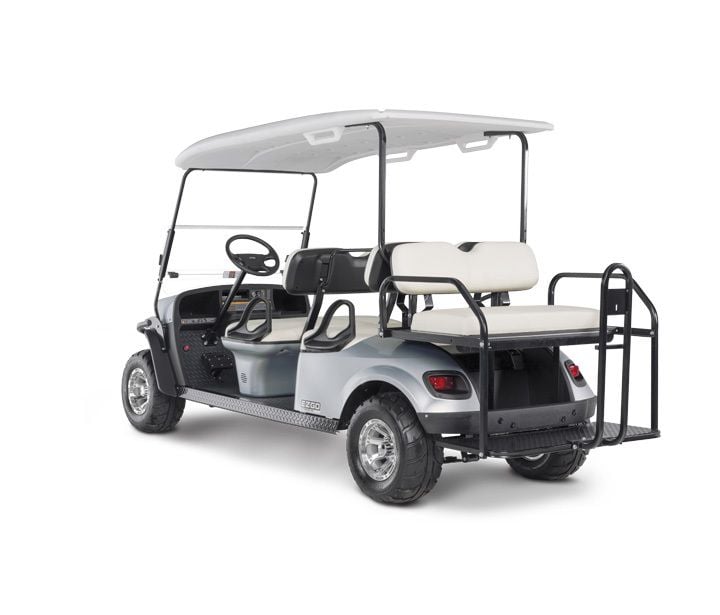

Express S6 - Electric 72v

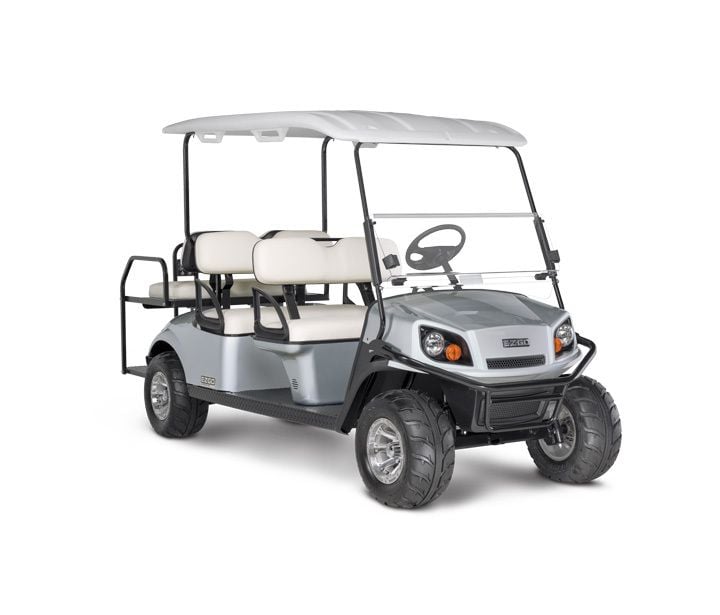

The Express S6 is built to help you enjoy your days in style and keep you ready for whatever lies ahead. With seating for 6 and a convertible cargo bed, the Express S6 is built to fit your friends, family and cargo. Equipped with chrome wheels and a lower ride height, the Express S6 delivers a smooth and stable ride every time. Now offered with the unmatched efficiency and power of the 72-volt AC drivetrain, hop into the Express S6 to see where the day can take you.
Standard Features
- 6 x Trojan T1275 12v Deep Cycle Lead Acid Batteries
- 72 V Delta Q DC Onboard 1500 Watt Charger
- AC Motor
- Oyster, Black or Tan Extended Top Assembly
- Oyster, Black, Tan or Two-toned Seats with 4 Caddi Flip Flop Rear Seat Kit
- Split Windshield
- State of Charge Meter
- Hour Meter
- Front Bumper/ Brush Guard
- Injection Moulded TPO Body finish
- Speedracer 18x10-10 on Diamond Wheel
- Unique Key switch
- Tail & Brake Lights
- Turn Signals
- USB Outlet
- Rabbit/Turtle Speed Switch
- DC Converter
- Limited Slip Differential
- Comfort Grip Steering Wheel
- High Output LED Headlights
- Horn and Reverse Beeper
- Choice of Colour
Options/Accessories
- All Weather enclosures ( Clear or Tinted)
- Woodside Stake Cargo Bed ( Replaces rear facing seat)
- Roto-molded plastic bed (replaces rear-facing seat)
- (BFS) Battery Watering System
- 2 Inch (5cm) Front Hitch Receiver
- Trail Tyres
Specifications
Dimensions
Overall Length: 345 cm
Overall Width: 124 cm
Overall Height (no canopy): 124 cm
Overall Height (with canopy): 183cm
Wheel Base: 253 cm
Front Wheel Track: 96 cm
Rear Wheel Track: 98 cm
Ground Clearance (at differential): 14 cm
Power
Power Source: 72 Volts AC
Motor Type: AC Induction
Horsepower (kW): 22.4 HP (16.7kW)
Electric System: 72 Volt
Battery (qty/type): Six, 12 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 72 V DC Delta Q, 120/230 VAC, UL & CSA
Speed Controller: 350 Amp AC
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:1
Performance
Seating Capacity: 4/6 Person
Dry Weight (without battery): 437 Kg
Curb Weight: 660 Kg
Vehicle Load Capacity: 544 Kg
Outside Clearance Circle: 10.9 m
High Speed (level ground): 25.7 kph ± 0.8 kph
Low Speed (level ground): 19.3 kph ± 0.8 kph
Towing Capacity: N/A
Steering & Suspension
Steering: Self-compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical self-adjusting drum
Parking Brake: Self-compensating, Single Point Engagement
Tyres: Speed Racer Tyres 18 x 10 - 10, Diamond Wheel
Body & Chassis
Frame: Welded steel with DuraShield powder coat
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal,Patriot Blue, Platinum, White, Jacobsen Orange
Standard Seat Colour: Red on Black
Optional Seat Colours: Black, Tan, Oyster, Grey on Black, White on Blue, White on Red
