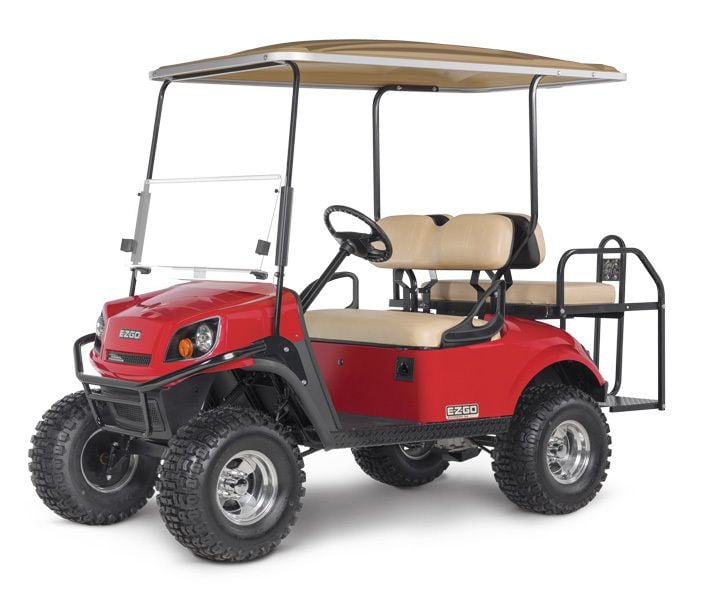

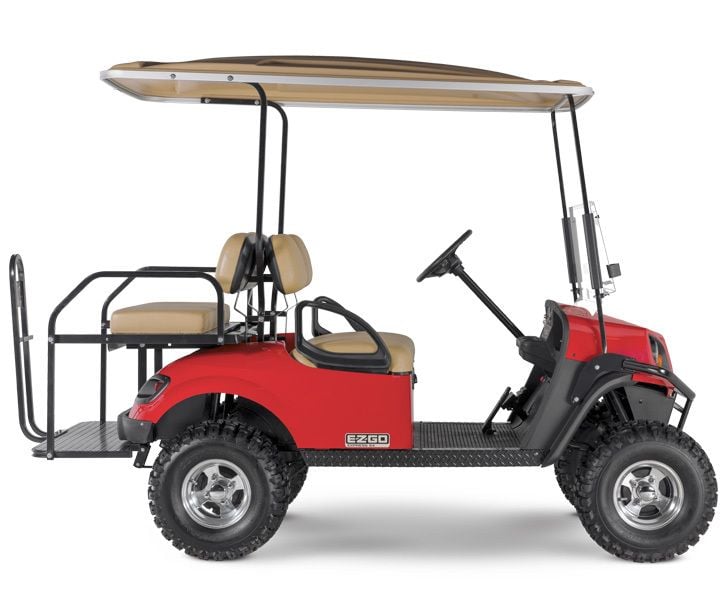

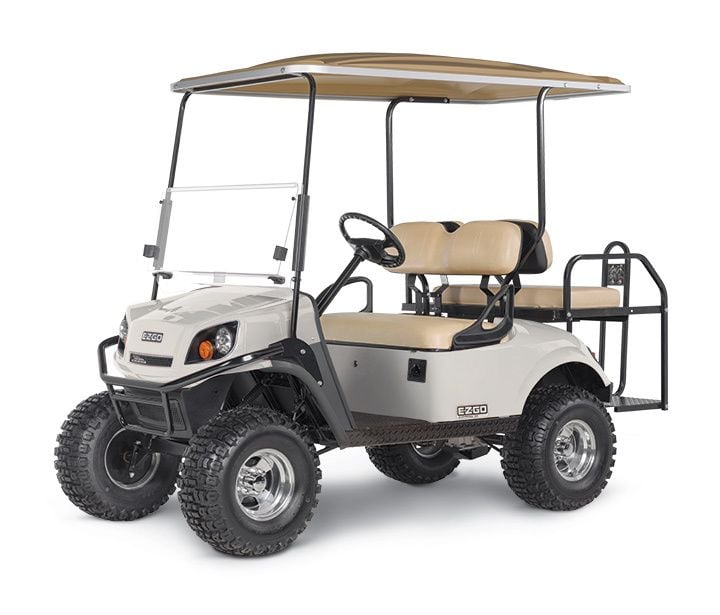

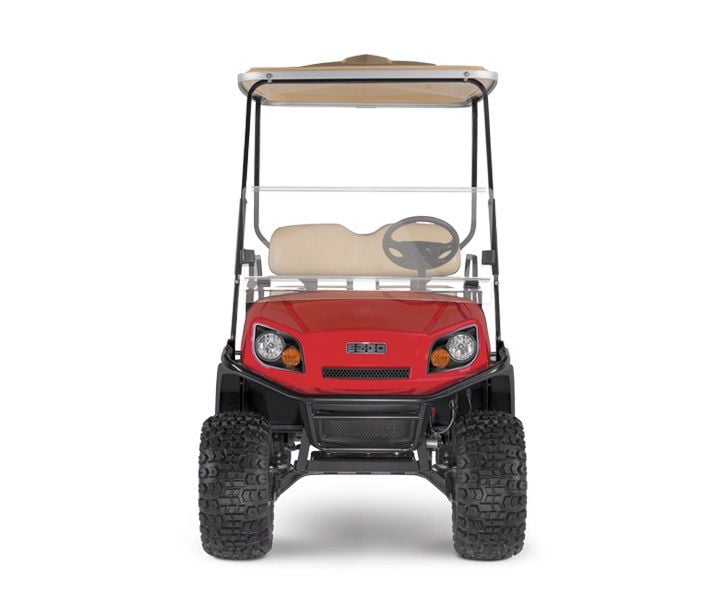

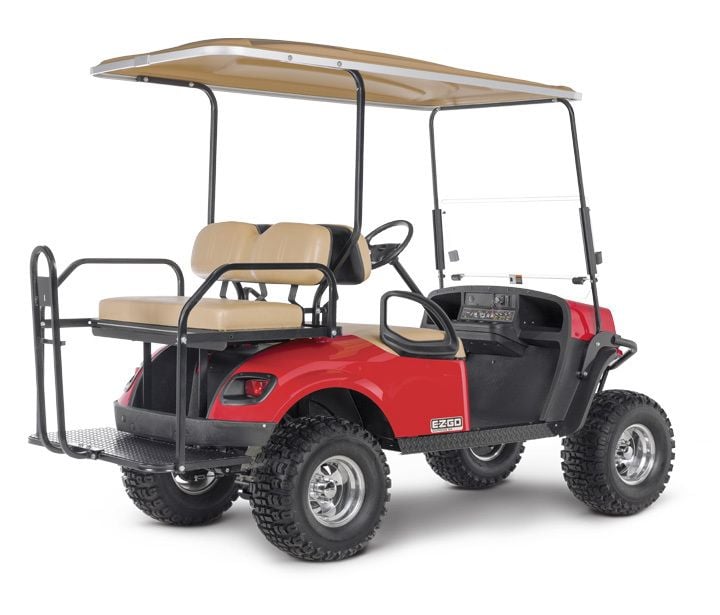

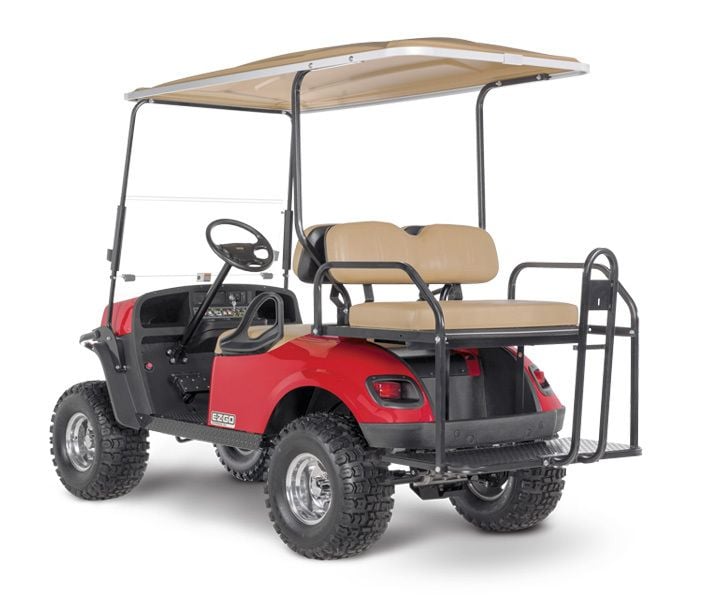

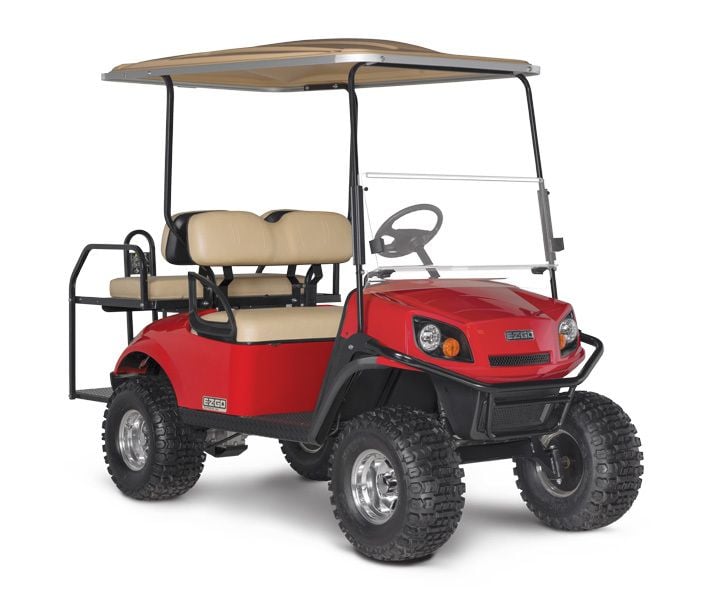

Express S4 - Electric 48v

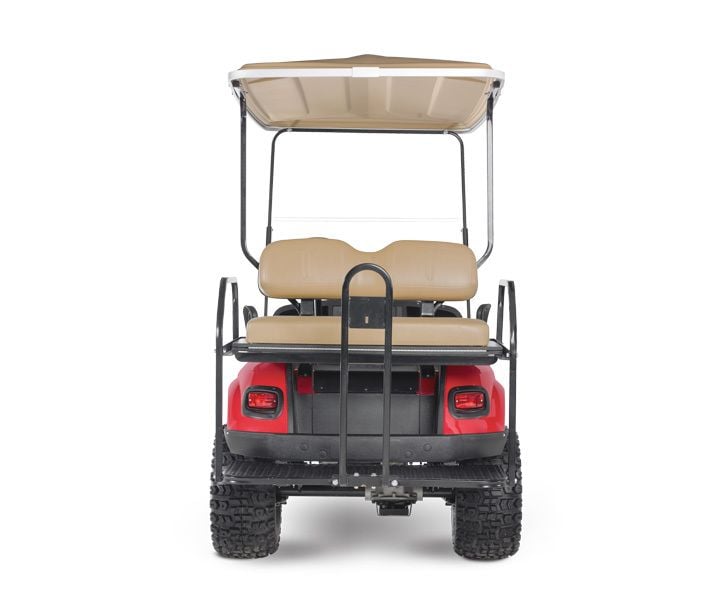

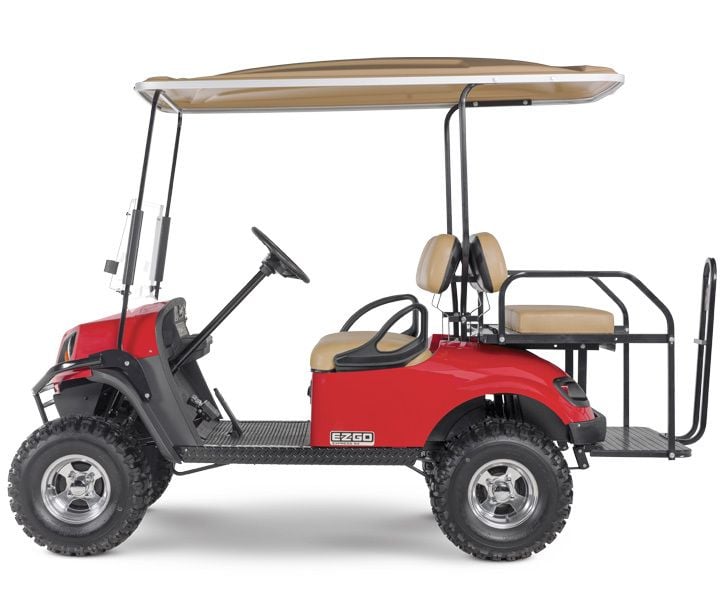

Every hour is an opportunity to get more out of life, and the E-Z-GO® Express S4 ensures you're always living life right. With seating for four and a rear seat that converts to a cargo deck, the Express S4 can take you anywhere. Get behind the wheel of the Express S4 and see what adventures lie ahead.
Standard Features
- 6 x Trojan T875 8v Deep Cycle Lead Acid Batteries
- 48v Delta Q DC Lightweight Portable Charger,
- Oyster, Black or Tan Extended Top Assembly
- Oyster, Black or Tan Seating with 4 Caddi Flip Flop Rear Seat Kit
- Split Windshield
- State of Charge Meter
- Hour Meter
- Front Bumper/ Brush Guard
- Injection Moulded TPO Body finish
- 18x10-10 Speedracer Tyres on Diamond Mag Wheels
- Unique Key switch
- Tail & Brake Lights
- Turn Signals
- DC Converter
- Limited Slip Differential
- Comfort Grip Steering Wheel
- 12 Volt Outlet
- High Output LED Headlights
- Horn and Reverse Beeper
- Choice of Colour
Options/Accessories
- All Weather enclosures ( Clear or Tinted)
- Mag Wheels
- (BFS) Battery Watering System
- Two-toned Seats
- Trail Tyres
Specifications
Dimensions
Overall Length: 290 cm
Overall Width: 123 cm
Overall Height (no canopy): 132 cm
Overall Height (with canopy): 203 cm
Wheel Base: 172 cm
Front Wheel Track: 95 cm
Rear Wheel Track: 95 cm
Ground Clearance (at differential): 13 cm
Power
Power Source: 48 Volts DC
Motor Type: Shunt Wound
Electric System: 48 Volt
Battery (qty/type): Six, 8 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 48 VDC, 120 VAC, UL/CSA
Speed Controller: 250 Amp Solid State Controller
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 14.76:1
Performance
Seating Capacity: 4 Person
Dry Weight (without battery): 382 Kg
Curb Weight: 549 Kg
Vehicle Load Capacity: 363 Kg
Outside Clearance Circle: 5.8 m
Intersecting Aisle Clearance: N/A
Speed (level ground): 28.2 kph ± 0.8 kph
Steering & Suspension
Steering: Self-compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel Mechanical self-adjusting drum
Parking Brake: Self-compensating, Single Point Engagement
Front Tyres: Trail Wolf 20x 11 - 10 Uni Directional
Rear Tyres: Trail Wolf 20x 11 - 10 Uni Directional
Body & Chassis
Frame: Welded steel with DuraShield powder coat
Front Body & Finish: Injection Moulded, TPO
Rear Body & Finish: Injection Moulded, TPO
Standard Colour: Almond, Black, Burgundy, Electric Blue, Flame Red, Forest Green, Inferno Red, Ivory, Metallic Charcoal, Monster Green,
Orange, Patriot Blue, Platinum, White
Standard Seat Colour: Tan
Optional Seat Colours: Oyster, Grey on Black, Red on Black, White on Blue, White on Red
