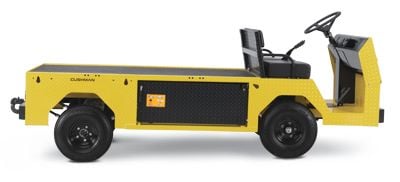

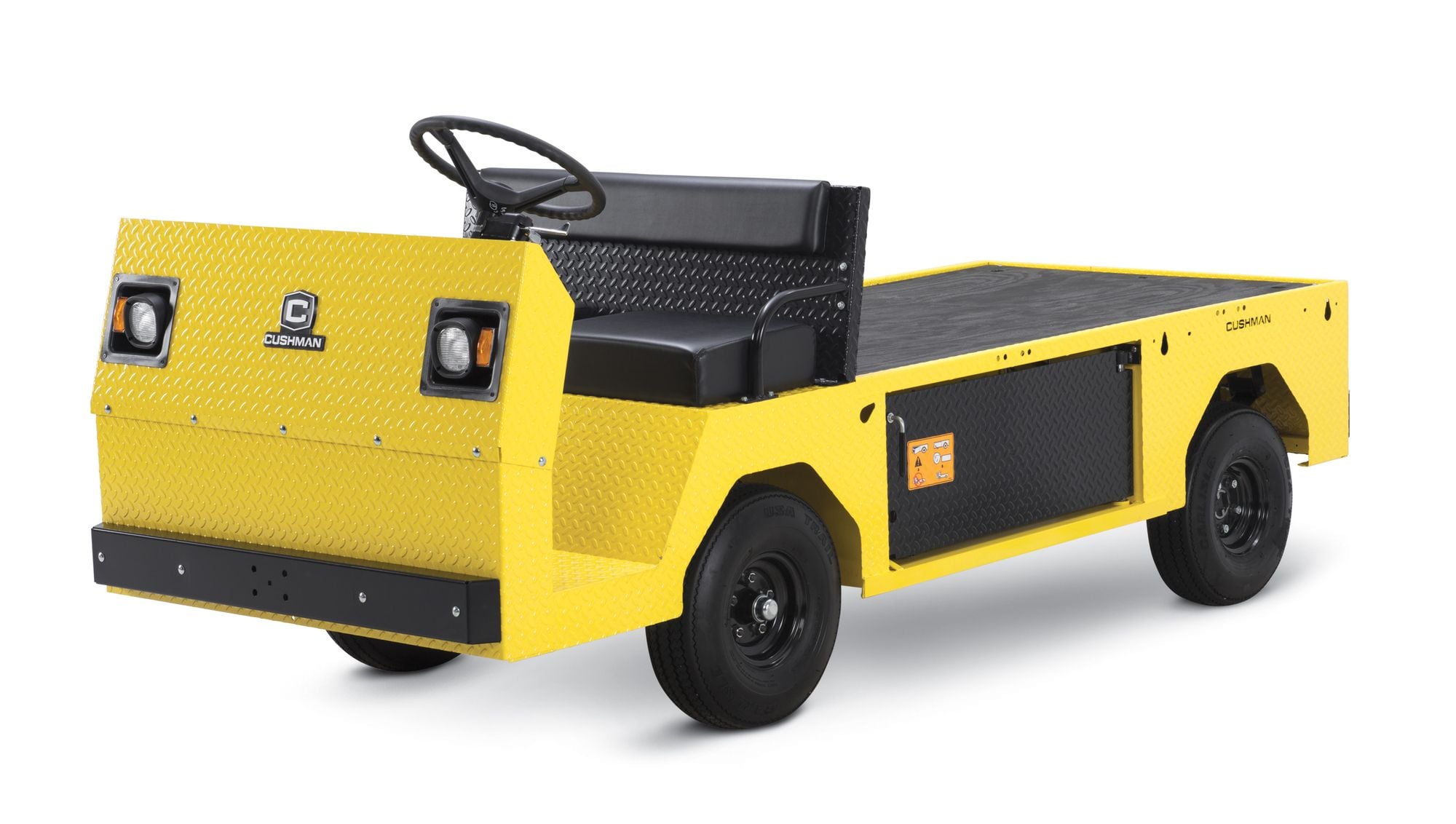

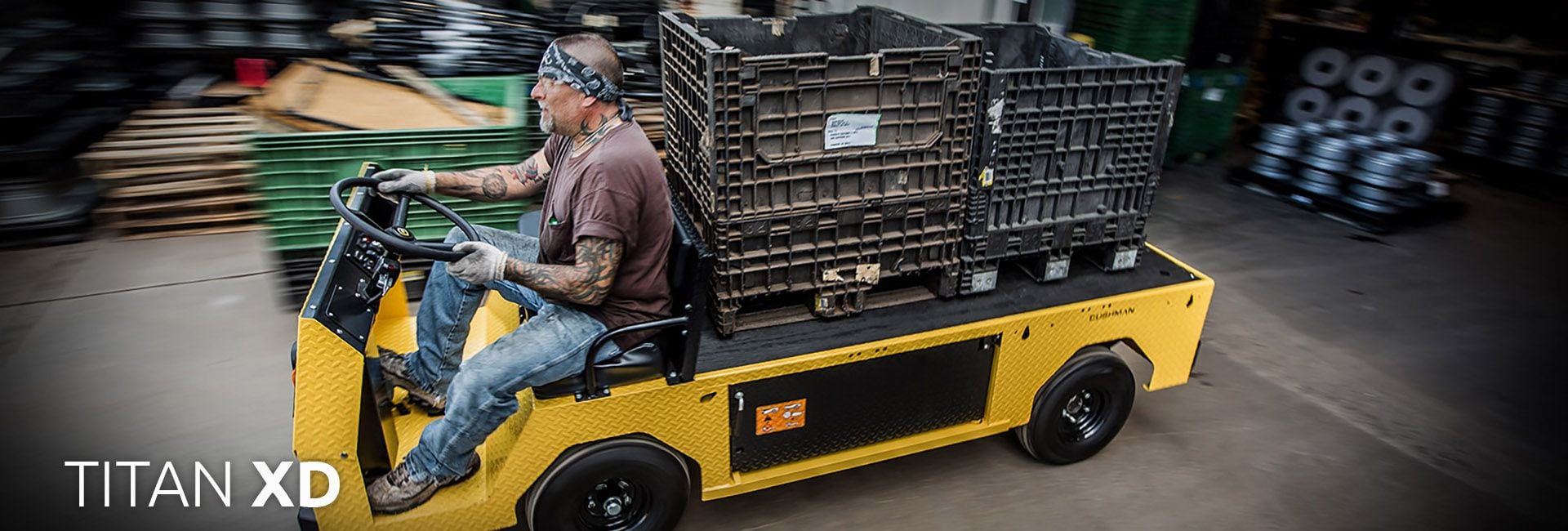

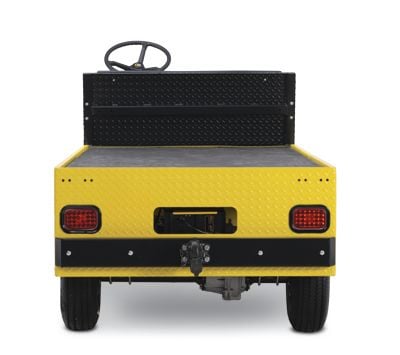

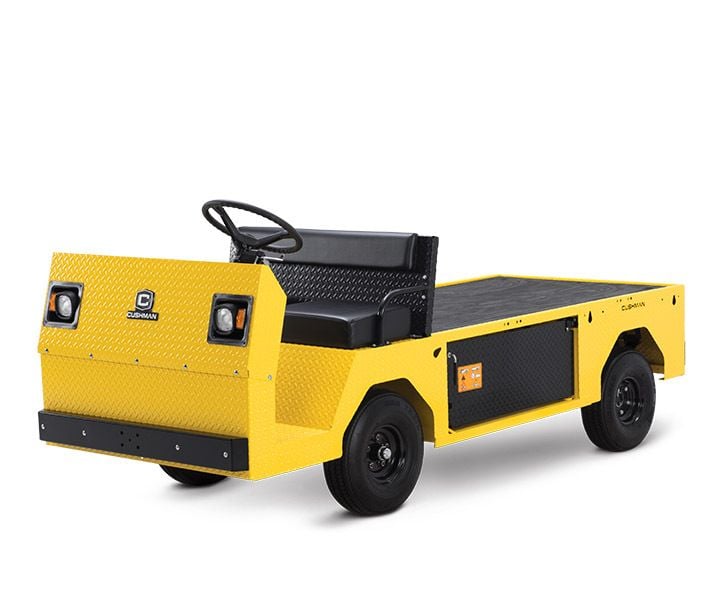

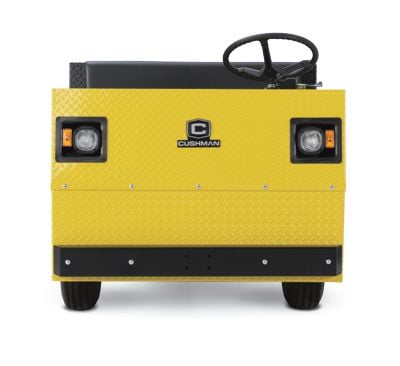

Titan XD - 48v AC Electric 2 Seater
The Titan XD is a force to be reckoned with - featuring AC power and IntelliBrake technology, it has the stamina required to carry load after load. With impressive towing performance up to 8,000 -lbs and hauling strength up to 3,000 -lbs, it's easy to see how the Titan XD is blue-collar grit wrapped in diamond-plated steel.
Standard Features
- 8 x 6V Trojan T105 Deep Cycle Batteries
- 48V Delta Q DC On-Board Charger
- AC Motor
- 2 Passenger with Heavy Duty Plywood Plastic Non Slip Laminate
- 2 x Swing Out Battery Trays
- Head, Tail and Brake Lights
- Turn Signals,
- Front & Rear Bumpers,
- 4 Wheel Hydraulic Disc Brakes
- Intelli Automatic Park Brake
- Hour Meter,
- Welded Steel with DuraShield coating Frame & Body
- Body Finish painted Diamond pattern
- DC Converter
- Horn and Reverse Beeper
- State of Charge Meter
- Operator Presence Switch
Options/Accessories
- Foam Filled Tyres
- Pintle Hitch (requires rear bumper)
- Clevis Hitch (requires rear bumper)
- Type EE Certification
- Maintenance Free Gel Batteries
- Hand Park Brake
- Rotating Amber Strobe
- Box Sids and Tailgate - Steel or Alluminium
- Long Top Assembly with Fold down windshield
- Short Top Assmebly with Fold down windshield
- DFK Hard Cab with Door, Windscreen and Wipers
- Steel Cargo Deck
- Tow Hitch and 50 mm Tow Ball
- Custom Colour
Specifications
Dimensions
Overall Length: 290 cm
Overall Width: 113 cm
Overall Height : 119 cm
Height with Optional Cab: 183 cm
Wheel Base: 170 cm
Front Wheel Track: 96 cm
Rear Wheel Track: 96 cm
Ground Clearance (at differential): 12 cm
Cargo Box Capacity: 1180 Kg
Cargo Box Material: Weather Proof Deck Board
Power
Power Source: 48 Volts
Horsepower: 16.8 hp ( 12.5 kW) Peak
Electric System: 48 Volt
Battery (qty/type): Eight, 6 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 48v On-board, Delta Q 120V AC, UL & CSA
Speed Controller: 450 Amp AC
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Dash Mounted Forward-Neutral-Reverse
Rear Axle Ratio: 17:1
Performance
Seating Capacity: 2 Person
Dry Weight (without battery): 572 Kg
Curb Weight: 796 Kg
Vehicle Load Capacity: 1361 Kg
Bed Load Capacity: 1180 Kg
Towing Capacity: 3628 Kg
Outside Clearance Circle: 6.47 m
Speed (level ground): 21 kph ± 0.8 kph Tow Mode: 8.1 kph ± 0.8 kph
Steering & Suspension
Steering: Rack and Pinion
Front Suspension: Independent, Transverse Leaf Spring Shocks
Rear Suspension: Leaf Springs and Shock Absorbers
Service Brake: Front Hydraulic Disc, Rear Hydraulic Drum
Parking Brake: Intellibrake Automatic Parking Brake
Tyres: 5.7 x 8 (Load Range C)
Body & Chassis
Frame: Welded steel with Durashield powder coat
Body & Finish: Diamond Plate Patterned, Poly Primer & Acrylic
Standard Colour: Safety Yellow
Optional Colour: Flame Red, Hunter Green, Arctic White
Available Seat Colours: Black
