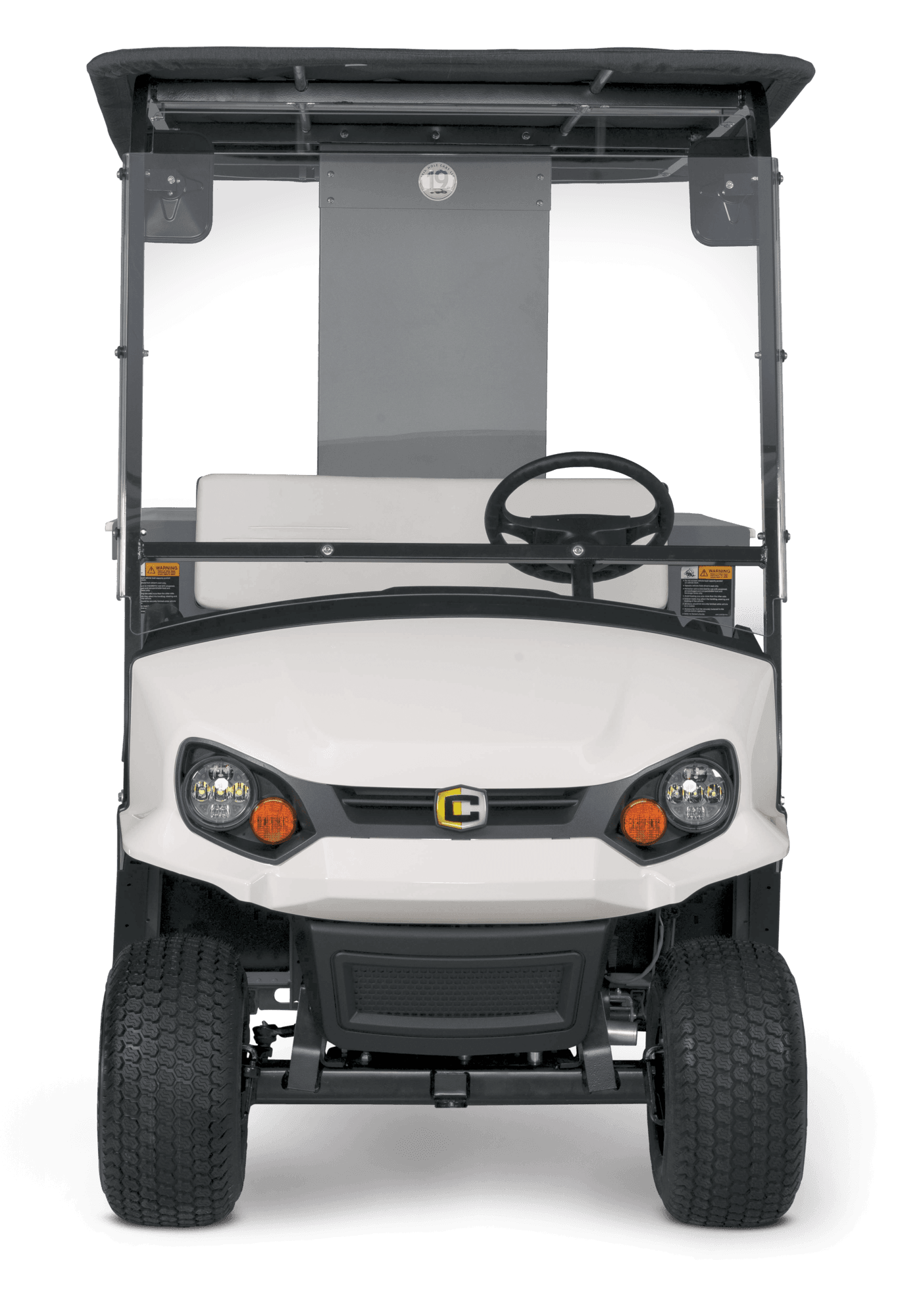

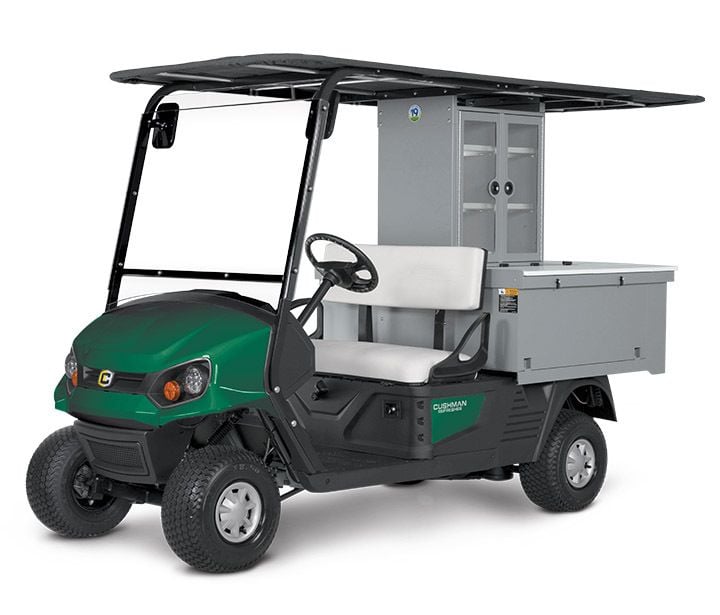

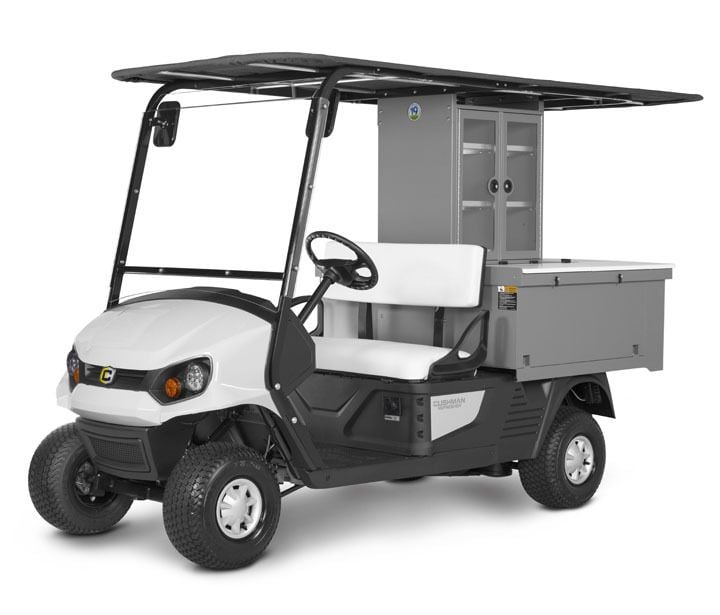

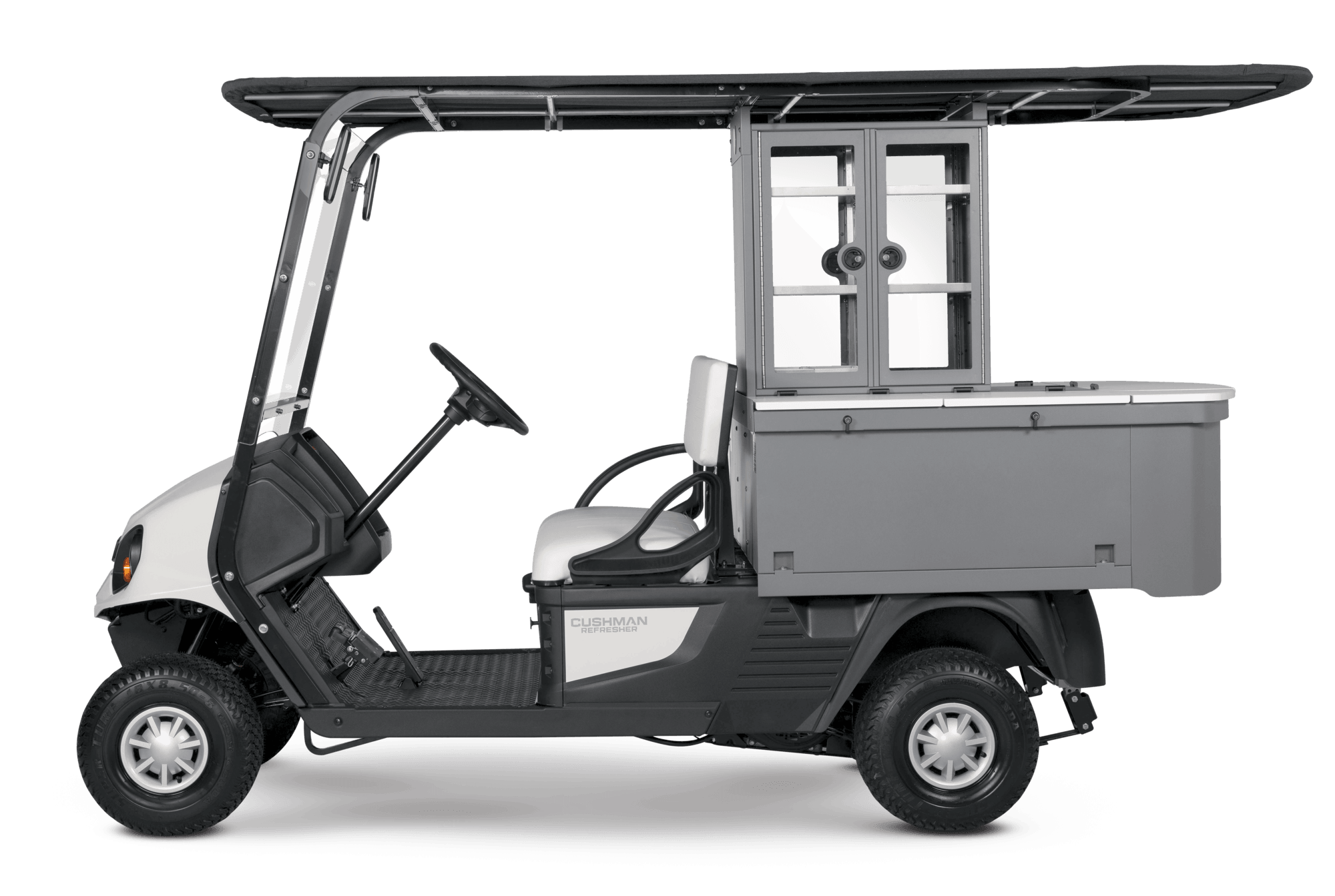

Refresher Oasis - 72v AC Electric
The Refresher Oasis was built for long days and busy events. With its industry-leading can capacity and enough merchandising space for your most popular items, stopping to restock is yesterday's problem. Now available in a 72-Volt AC electric drivetrain or a 13.5hp Kawasaki gas engine.
Standard Features
- 9 x 8V Trojan T875 Deep Cycle Lead Acid Batteries
- 72V Delta Q 900 Watt On-board Charger
- AC Motor
- Headlights, Tail & Brake Lights
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- State of Charge Meter
- Hour Meter
- Fender Flares
- Limited Slip Differential with Diff Guard
- 12-Volt Outlet
- Horn and Reverse Beeper
- K 500 20x 8- 10 (6 Ply) Wheels
- Comfort Grip Steering Wheel
- 4 locking lids in white countertop with hold open brackets
- Drain valve; Extended countertop at rear of deck with trash /recycle storage with lid and hold open bracket
- Solid Windshield with Frame
- Struts and Slate Canopy
- Side Mirrors (left and right)
- Beverage tank with built-in dividers
- 2 plastic removable bins ( 1 blue, 1 green)
- 3.0 Liter Airpots (2)
- Consumable Ice Bin with Lid
Options/Accessories
- Electric Food Warmer
- All Weather Enclosure to Cab
- Colour Options available for Canopy, Unit and
- Vehicle
Specifications
Dimensions
Overall Length: 297.18 cm
Overall Width: 129.03 cm
Overall Height (with canopy): 186.18 cm
Wheel Base: 193.04 cm
Front Wheel Track: 88.9 cm
Rear Wheel Track: 97.79 cm
Ground Clearance (at differential): 11.43 cm
Refresher Unit Material/Finish: 5000 Series Aluminium - Super Durable TGIC Polyester Powder Coating
Power
Power Source: 72 Volts
Motor Type: AC Induction
Horsepower: 22.4 HP ( 16.7 kW) Peak
Electric System: 72 Volt
Battery (qty/type): Nine, 8 Volt Deep Cycle
Key or Pedal Start: Pedal Start
Battery Charger: 900 Watt, 72V DC
Drive Train: Motor Shaft Direct Drive
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Neutral-Reverse
Rear Axle Ratio: 17:1
Performance
Seating Capacity: 2 Person
Dry Weight (without battery): 501.22 Kg
Curb Weight: 757.50 Kg
Vehicle Load Capacity: 483 Kg
Outside Clearance Circle: 6.5 m
Speed (level ground): 17 kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 18 - 8.5 - 8
Body & Chassis
Frame: Welded steel with E-Shield ecoat plus Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Standard Colour: Forest Green
Optional Colour: Black, Electric Blue, Flame Red, Patriot Blue, White, Ivory
Available Seat Colours: Grey
