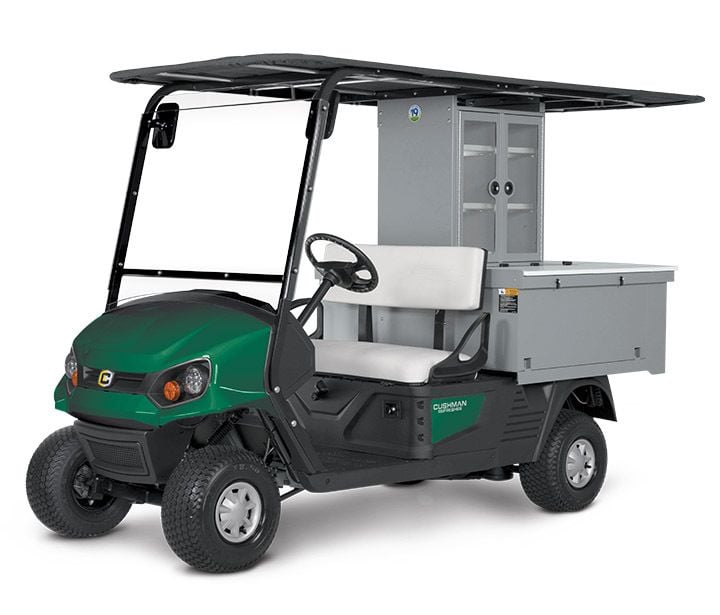

Refresher Oasis - 13.5 hp Petrol
The Refresher Oasis was built for long days and busy events. With its industry-leading can capacity and enough merchandising space for your most popular items, stopping to restock is yesterday's problem. Now available in a 72-Volt AC electric drivetrain or a 13.5hp Kawasaki gas engine.
Standard Features
- Kawasaki 13hp Single Cylinder Engine
- Headlights, Tail & Brake Lights
- Steel DuraShield Epoxy Coated Chassis
- Body Finish Injection Moulded TPO
- Low Fuel/Oil Gauge
- Hour Meter
- Fender Flares
- 12-Volt Outlet
- Horn and Reverse Beeper
- K 500 20x 8- 10 (6 Ply) Wheels
- Comfort Grip Steering Wheel
- 4 locking lids in white countertop with hold open brackets
- Drain valve; Extended countertop at rear of deck with trash /recycle
- storage with lid and hold open bracket
- Solid Windshield with Frame
- Struts and Slate Canopy
- Side Mirrors (left and right)
- Beverage tank with built-in dividers
- 2 plastic removable bins ( 1 blue, 1 green)
- 3.0 Liter Airpots (2)
- Consumable Ice Bin with Lid
Options/Accessories
- Electric Food Warmer
- All Weather Enclosure to Cab
- Colour Options available for Canopy, Unit and
- Vehicle
Specifications
Dimensions
Overall Length: 297.18 cm
Overall Width: 129.03 cm
Overall Height (with canopy): 186.18 cm
Wheel Base: 193.04 cm
Front Wheel Track: 88.9 cm
Rear Wheel Track: 97.79 cm
Ground Clearance (at differential): 11.43 cm
Refresher Unit Material/Finish: 5000 Series Aluminium - Super Durable TGIC Polyester Powder Coating
Power
Power Source: 4 Cycle 24.5 ci(401cc)
Valvetrain: Single Cylinder OHV
Horsepower: 13.5 hp (10.1 kW) Exceeds SAEJ19402 Std
Electric System: Starter/Generator - Solid State Reg
Battery (qty/type): One, 12v Maintenance Free
Key or Pedal Start: Pedal Start
Air Cleaner: Industrial Rated Dry Cartridge
Lubrication: Pressurized Oil System
Oil Filter: Spin On
Cooling System: Air Cooled
Fuel Capacity: 22.7 L
Drive Train: Continuously Variatble Transmission ( CVT)
Transaxle: Differential with Helical Gears
Gear Selection: Forward-Reverse
Rear Axle Ratio: 16.53:1 (Forward) 16.81:1 (Reverse)
Performance
Seating Capacity: 2 Person
Dry Weight (without battery): 514.83 Kg
Curb Weight: 532.97 Kg
Vehicle Load Capacity: 483 Kg
Outside Clearance Circle: 6.5 m
Speed (level ground): 17 kph ± 0.8 kph
Steering & Suspension
Steering: Self Compensating Rack and Pinion
Front Suspension: Leaf Springs with hydraulic Shock Absorbers
Rear Suspension: Leaf Springs with hydraulic Shock Absorbers
Service Brake: Rear Wheel, Mechanical Self-Adjusting Drum
Parking Brake: Self-Compensating, Single Point Engagement
Tyres: 18 - 8.5 - 8
Body & Chassis
Frame: Welded steel with E-Shield ecoat plus Durashield powder coat
Front Body & Finish: Injection Moulded TPO
Standard Colour: Forest Green
Optional Colour: Black, Electric Blue, Flame Red, Patriot Blue, White, Ivory
Available Seat Colours: Grey
